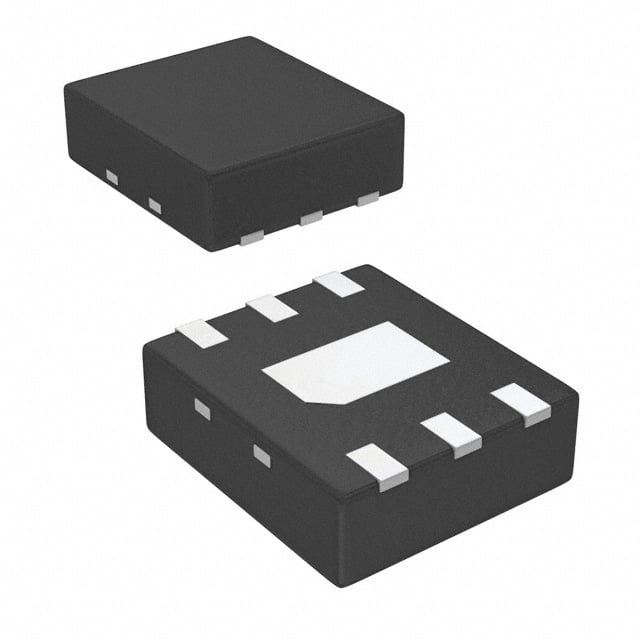

DAC101C081QISD/NOPB TI DAC | 6-WSON (2.2x2.5) | 10-Bit, I2C, 1-Channel

Product Overview

The DAC101C081QISD/NOPB is a 10-bit, single-channel, voltage-output digital-to-analog converter (DAC) from Texas Instruments. It operates from a single 2.7V to 5.5V supply and features an I2C-compatible interface. The device is offered in a compact 6-pin WSON package (2.2mm x 2.5mm), making it ideal for space-constrained applications. The DAC101C081QISD/NOPB is automotive qualified (AEC-Q100) and supports extended temperature range (-40°C to +125°C).

Detailed Technical Specifications

Key Features

• 10-bit monotonic resolution
• I2C interface with up to 3.4 MHz speed
• Low power consumption: 0.5 mW at 3V
• Rail-to-rail output voltage swing
• Power-on reset to zero-scale
• Automotive grade (AEC-Q100)
• Small footprint: 2.2mm x 2.5mm WSON package

Target Applications

• Automotive: Advanced driver-assistance systems (ADAS) sensor calibration, infotainment display backlight control, battery management systems (BMS) for electric vehicles
• Industrial: Programmable logic controllers (PLC) analog output modules, motor control set-point adjustment, sensor transmitter calibration
• Consumer: Portable instrumentation, audio volume control, LED brightness control
• Communications: 5G base station power amplifier bias control, optical module bias adjustment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC101C081QISD/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DAC101C081QISD/NOPB 是德州儀器（TI）推出的一款10位、單通道、電壓輸出數模轉換器（DAC）。它採用2.7V至5.5V單電源供電，並配備I2C兼容接口。器件採用緊湊的6引腳WSON封裝（2.2mm x 2.5mm），非常適合空間受限的應用。該器件通過AEC-Q100汽車級認證，支持-40°C至+125°C的擴展溫度範圍。

詳細技術參數

核心特性

• 10位單調分辨率
• I2C接口，速度高達3.4 MHz
• 低功耗：3V時0.5 mW
• 軌到軌輸出電壓擺幅
• 上電復位至零電平
• 汽車級認證（AEC-Q100）
• 小尺寸：2.2mm x 2.5mm WSON封裝

典型應用場景

• 汽車：高級駕駛輔助系統（ADAS）傳感器校準、信息娛樂顯示背光控制、電動汽車電池管理系統（BMS）
• 工業：可編程邏輯控制器（PLC）模擬輸出模塊、電機控制設定點調整、傳感器變送器校準
• 消費類：便攜式儀器、音頻音量控制、LED亮度控制
• 通信：5G基站功率放大器偏置控制、光模塊偏置調整

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DAC101C081QISD/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
