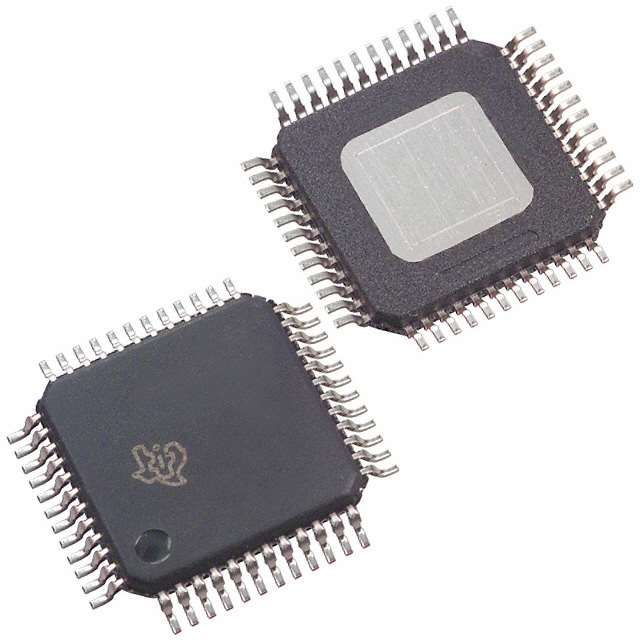

DAC5675AIPHPR TI High-Speed DAC | 48-HTQFP (7x7) | 14-Bit, 400 MSPS

Product Overview

The DAC5675AIPHPR is a high-performance, 14-bit digital-to-analog converter (DAC) from Texas Instruments, offering a sampling rate of up to 400 MSPS. It is designed for demanding applications such as wireless communications, instrumentation, and radar systems. The device features a differential current output, excellent dynamic performance, and low power consumption, making it ideal for high-speed signal generation. Housed in a compact 48-HTQFP (7x7 mm) package, it enables space-constrained designs without compromising performance.

Detailed Technical Specifications

Key Features

• 14-bit resolution with 400 MSPS update rate
• Excellent spurious-free dynamic range (SFDR): 75 dBc at 100 MHz
• Low intermodulation distortion (IMD3): 85 dBc at 100 MHz
• Differential current output simplifies external filtering
• On-chip 1.2V reference and output termination resistors
• Low power: 1.2 W typical at 400 MSPS
• LVDS-compatible digital interface for high-speed data transfer
• Small 48-HTQFP package for space-constrained designs

Target Applications

• 5G base station transmitters (e.g., remote radio heads)
• Software-defined radio (SDR) systems
• Arbitrary waveform generators for test equipment
• Radar and electronic warfare systems
• Medical imaging (ultrasound beamforming)
• High-speed data acquisition systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC5675AIPHPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
