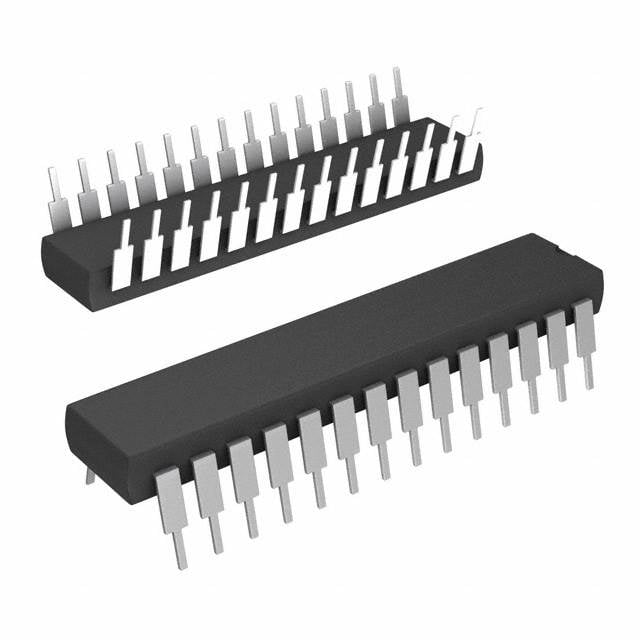

DAC712PK TI DAC | 28-PDIP | 16-Bit, 100ksps, ±10V Output

Product Overview

The DAC712PK is a high-performance 16-bit digital-to-analog converter (DAC) from Texas Instruments, designed for precision industrial and instrumentation applications. It features a voltage output with a ±10V range, a maximum conversion rate of 100 kilosamples per second (ksps), and operates from a single +5V supply. The device is housed in a 28-pin PDIP package, ensuring easy integration into through-hole PCB designs. With its excellent linearity, low noise, and monotonic performance, the DAC712PK is ideal for closed-loop control systems, automatic test equipment, and waveform generation.

Detailed Technical Specifications

Key Features

• 16-bit monotonic performance over temperature
• Fast settling time: 10 µs to ±0.003% FSR
• Low glitch energy: 1 nV·s
• On-chip output amplifier with short-circuit protection
• Double-buffered input logic for simultaneous update
• Single +5V supply operation
• Wide operating temperature range: -40°C to +85°C

Target Applications

• Industrial process control (e.g., PLC analog output modules)
• Automatic test equipment (ATE) for precision voltage generation
• Motor control systems (e.g., servo drive reference signals)
• Medical instrumentation (e.g., patient monitoring systems)
• Audio and waveform generation (e.g., arbitrary waveform generators)
• 5G base station power amplifier bias control
• Automotive dashboard display calibration

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC712PK. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
