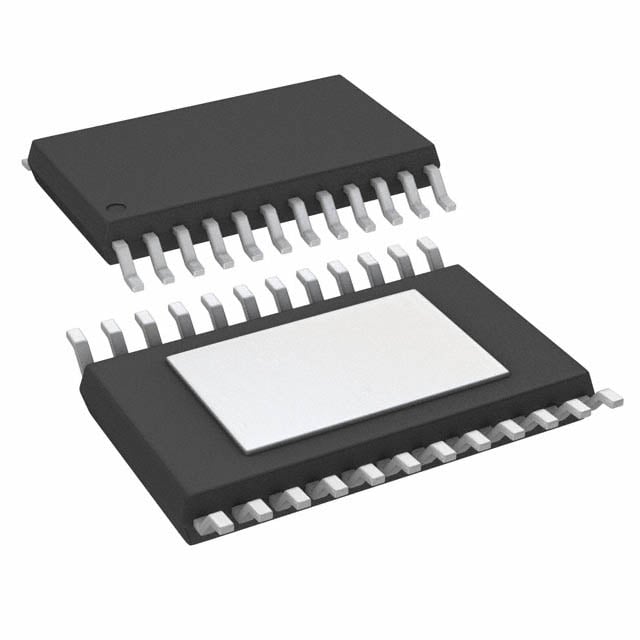

DAC8760IPWPR TI DAC | 24-HTSSOP | 16-Bit, 4-20mA, ±0.1% FSR

Product Overview

The DAC8760IPWPR is a precision, 16-bit, digital-to-analog converter (DAC) from Texas Instruments, designed for industrial process control applications. It offers a programmable output range of 4-20 mA, 0-20 mA, or 0-5 V/0-10 V, making it ideal for driving actuators, valves, and transmitters. Housed in a compact 24-HTSSOP package, it integrates a voltage reference, output amplifier, and fault detection circuitry.

Detailed Technical Specifications

Key Features

• 16-bit monotonic resolution with low noise
• Programmable output ranges: 4-20 mA, 0-20 mA, 0-5 V, 0-10 V
• Integrated 2.5 V reference with 10 ppm/°C drift
• Open-loop and short-circuit detection
• SPI interface with daisy-chain capability
• Power-on reset to 0 V or 4 mA
• Thermal shutdown protection

Target Applications

• Industrial process control: PLC analog output modules, actuator control
• Building automation: HVAC damper and valve control
• Test and measurement: Signal generation for sensor simulation
• Automotive: Battery management system current loop
• 5G base station: Remote radio unit bias control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DAC8760IPWPR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
