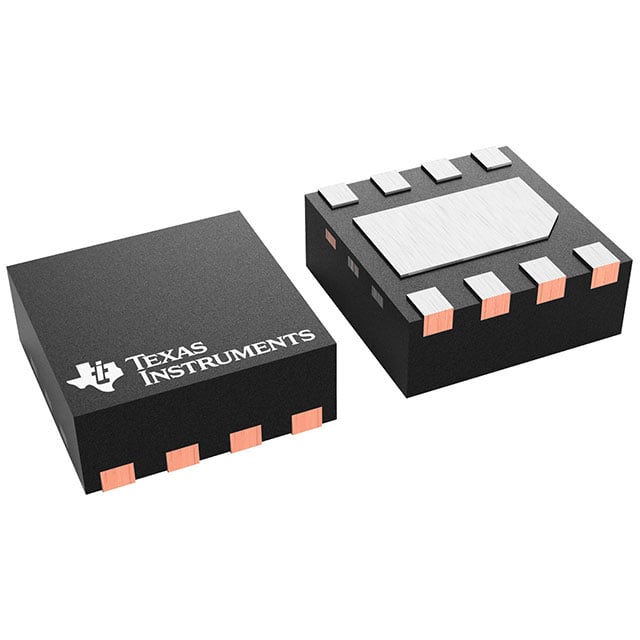

DRV8220DSGR TI Motor Driver | 8-WSON (2x2) | 1.65-11V, 1.5A

Product Overview

The DRV8220DSGR from Texas Instruments is a low-voltage, high-performance H-bridge motor driver designed for driving one DC motor or one winding of a stepper motor. It operates from a supply voltage range of 1.65 V to 11 V and can deliver up to 1.5 A of continuous output current. The device is housed in a compact 8-pin WSON package with a 2 mm x 2 mm footprint, making it ideal for space-constrained applications. It integrates a full set of protection features including overcurrent, overtemperature, and undervoltage lockout.

Detailed Technical Specifications

Key Features

• Wide supply voltage range: 1.65 V to 11 V
• High output current: 1.5 A continuous, 2 A peak
• Low RDS(on): 0.6 Ω typical
• Compact 8-WSON package (2 mm x 2 mm)
• Integrated protection: OCP, OTP, UVLO, OVP
• Simple PH/EN or PWM control interface
• Low sleep current: < 1 μA

Target Applications

• 5G base station antenna tilt control
• Automotive dashboard stepper motors
• Portable medical devices (e.g., infusion pumps)
• Battery-powered toys and robotics
• Industrial valve actuators
• Consumer electronics (e.g., camera lens motors)
