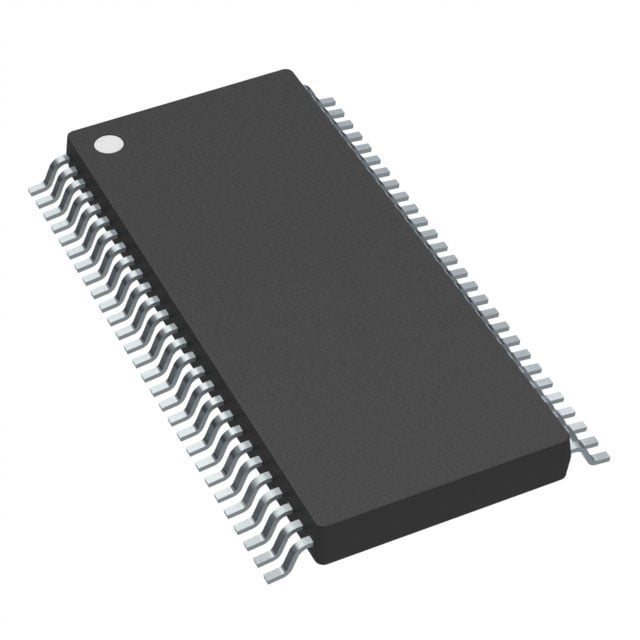

DRV8301DCAR TI Motor Driver | 56-HTSSOP | 3-Phase, 1.3A Gate Drive

Product Overview

The DRV8301DCAR is a three-phase gate driver IC from Texas Instruments, designed for brushless DC (BLDC) motor control applications. It integrates three half-bridge gate drivers capable of driving up to 1.3A peak gate current, along with a buck converter for logic supply and a linear regulator for gate drive. The device operates from a supply voltage of 6V to 60V and is housed in a 56-pin HTSSOP package with PowerPAD for enhanced thermal performance. It features integrated protection functions including overcurrent, overtemperature, and undervoltage lockout.

Detailed Technical Specifications

Key Features

• Three-phase gate driver for N-channel MOSFETs
• Integrated buck converter (3.3V/5V) and linear regulator (12V)
• SPI interface for configuration and diagnostics
• Adjustable dead time and slew rate control
• Comprehensive fault protection

Target Applications

The DRV8301DCAR is ideal for industrial and automotive motor control systems. Specific examples include: 5G base station cooling fans, automotive dashboard HVAC blowers, electric power steering (EPS) pumps, industrial servo drives, and robotic actuators.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8301DCAR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
