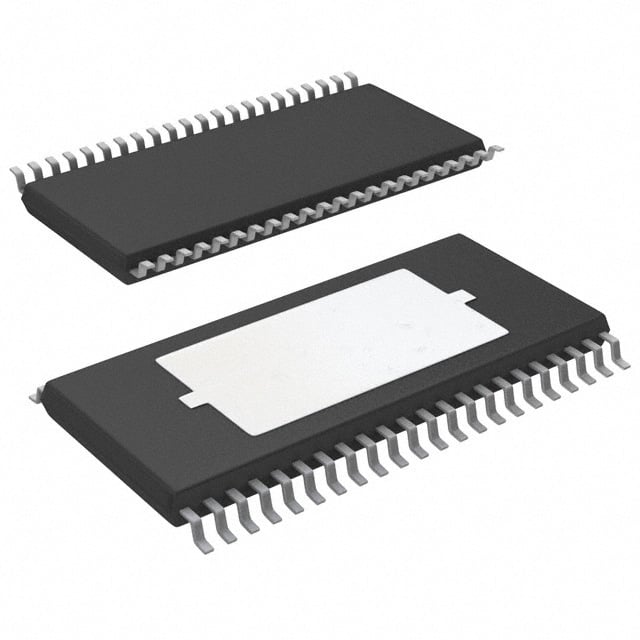

DRV8312DDW TI Motor Driver | 44-HTSSOP | 3-Phase, 50V, 3.5A

Product Overview

The DRV8312DDW is a three-phase brushless DC (BLDC) motor driver from Texas Instruments, designed for high-performance motor control applications. It integrates three half-bridge drivers with a maximum supply voltage of 50V and continuous output current of 3.5A per channel. The device is housed in a 44-pin HTSSOP package with an exposed pad for enhanced thermal dissipation. It features independent control of each phase, making it suitable for sensorless or sensored field-oriented control (FOC) and trapezoidal commutation. The DRV8312DDW includes protection features such as overcurrent, overtemperature, and undervoltage lockout, ensuring reliable operation in demanding environments.

Detailed Technical Specifications

Key Features

• Three independent half-bridge drivers for 3-phase BLDC motors
• Wide supply voltage range: 8V to 50V
• High continuous output current: 3.5A per channel
• Low RDS(on) for reduced power dissipation
• Supports 3.3V and 5V logic interfaces
• Integrated bootstrap diodes for high-side gate drive
• Protection: overcurrent, overtemperature, undervoltage lockout, and fault reporting
• 44-pin HTSSOP package with exposed pad for thermal management

Target Applications

• Industrial automation: robotic arms, conveyor belts, and CNC machines
• Consumer electronics: drones, gimbals, and power tools
• Automotive: electric power steering, cooling fans, and pumps
• Medical equipment: ventilators, infusion pumps, and surgical tools
• 5G base station: antenna tilt control and cooling fans
• Dashboard: haptic feedback actuators and display positioning

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8312DDW. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
