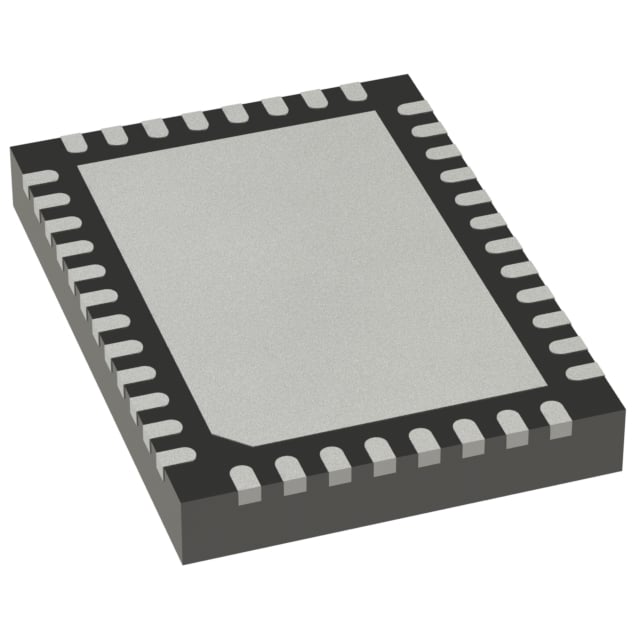

DRV8316RRGFR TI Motor Driver | 40-VQFN (7x5) | 4.5V-35V, 8A Peak

Product Overview

The DRV8316RRGFR is a three-phase brushless DC (BLDC) motor driver from Texas Instruments, designed for high-performance motor control applications. It integrates three half-bridge drivers with a peak current capability of 8 A and supports a wide supply voltage range from 4.5 V to 35 V. The device is housed in a compact 40-pin VQFN package (7 mm x 5 mm) with an exposed thermal pad for efficient heat dissipation. It features advanced protection functions including overcurrent, overtemperature, and undervoltage lockout, making it suitable for industrial and automotive environments.

Detailed Technical Specifications

Key Features

• Three-phase BLDC motor driver with integrated MOSFETs
• Low RDS(on) for high efficiency
• Adjustable current regulation via PWM
• Built-in 3.3 V/5 V regulator for external MCU
• SPI interface for configuration and diagnostics
• Protection: overcurrent, overtemperature, undervoltage, and cross-conduction
• Small footprint package for space-constrained designs

Target Applications

• Industrial automation: robotic arms, conveyor belts
• Automotive: electric power steering, cooling fans
• Consumer: drones, power tools, home appliances
• Medical: infusion pumps, ventilators
• 5G base station: antenna tilting motors
• Dashboard: haptic feedback actuators

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DRV8316RRGFR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
