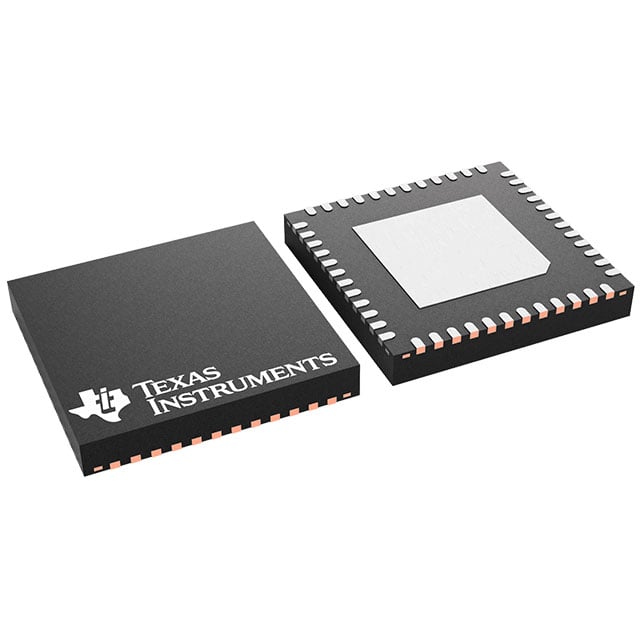

DRV8323RHRGZT TI Motor Driver | 48-VQFN (7x7) | 4.5-60V, 3-Phase BLDC

Product Overview

The DRV8323RHRGZT from Texas Instruments is a highly integrated three-phase gate driver for brushless DC (BLDC) motor applications. It features three half-bridge gate drivers, each capable of driving high-side and low-side N-channel MOSFETs. The device operates from a supply voltage range of 4.5 V to 60 V and supports peak gate drive currents of up to 1 A source and 2 A sink. It includes a buck regulator for generating a low-voltage supply, integrated current sensing amplifiers, and comprehensive protection features. The compact 48-pin VQFN (7x7 mm) package makes it ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Three-phase gate driver with integrated bootstrap diodes
• Wide input voltage range: 4.5 V to 60 V
• High peak gate drive current: 1 A source / 2 A sink
• Integrated buck regulator (3.3 V or 5 V, 200 mA)
• Dual current sense amplifiers with adjustable gain
• SPI interface for configuration and diagnostics
• Comprehensive protection: undervoltage lockout (UVLO), overcurrent protection (OCP), overtemperature shutdown (OTS), overvoltage protection (OVP)
• Compact 48-VQFN (7x7 mm) package

Target Applications

• 5G base station cooling fans
• Automotive dashboard blowers
• Industrial servo drives
• Robotics and drones
• Power tools
• Home appliances (e.g., washing machines, air conditioners)
