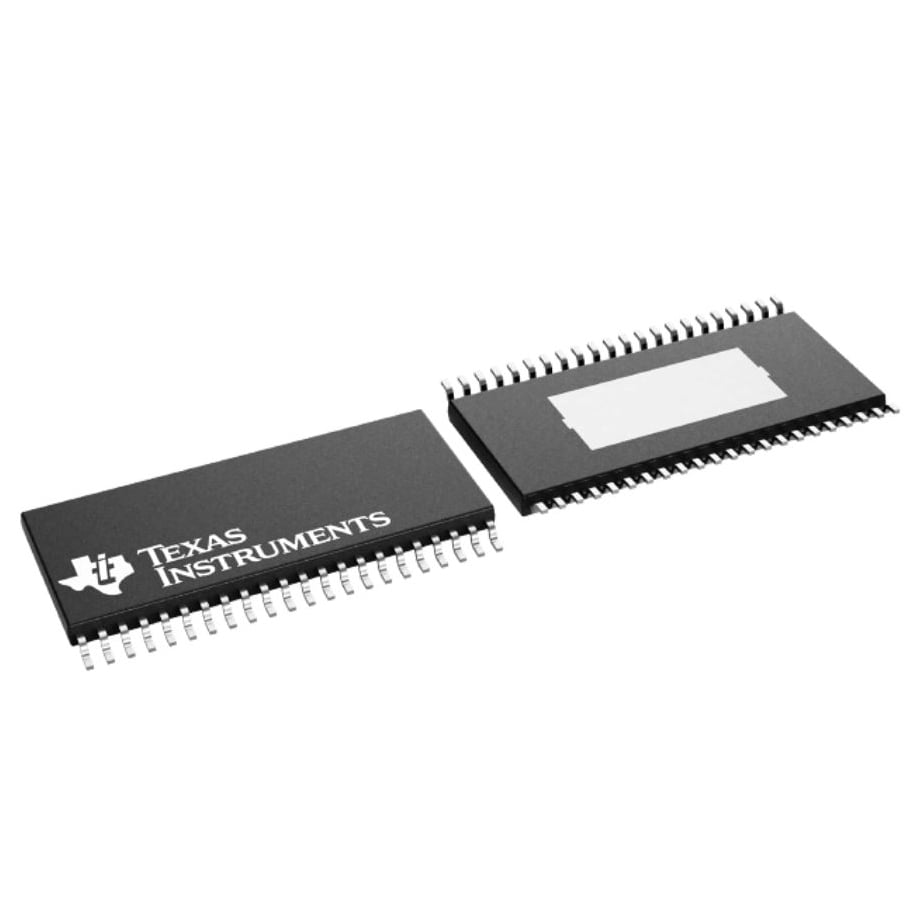

DRV8461DDWR TI Stepper Motor Driver | 44-HTSSOP | 2.5A, 65V

Product Overview

The DRV8461DDWR from Texas Instruments is a highly integrated stepper motor driver designed for industrial and automotive applications. It features dual H-bridge drivers capable of driving up to 2.5 A peak current per bridge with a supply voltage range from 8.2 V to 65 V. The device includes advanced current regulation, microstepping up to 1/256 step, and a comprehensive set of protection features. Housed in a 44-pin HTSSOP package with exposed pad for thermal dissipation, the DRV8461DDWR is ideal for precise motion control in demanding environments.

Detailed Technical Specifications

Key Features

• Dual H-bridge stepper motor driver
• Advanced current regulation with smart tune ripple control
• Microstepping up to 1/256 step for smooth motion
• SPI interface for configuration and diagnostics
• Integrated protection: overcurrent, overvoltage, undervoltage lockout, overtemperature
• Low RDS(on) for high efficiency
• Adjustable current decay modes
• Supports 3.3 V and 5 V logic levels

Target Applications

• Industrial automation: robotic arms, CNC machines, 3D printers
• Automotive: headlamp leveling, HVAC actuators, dashboard stepper motors
• Medical equipment: syringe pumps, diagnostic scanners
• Office automation: printers, scanners, copiers
• 5G base station: antenna tilt control, filter tuning
