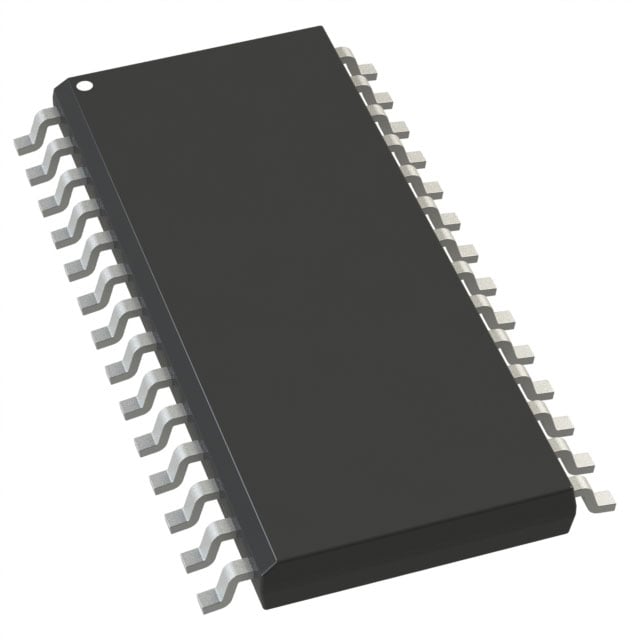

DRV8814PWP TI Stepper Motor Driver | 28-HTSSOP | 2.5A, 8-45V

Product Overview

The DRV8814PWP from Texas Instruments is a dual-bridge stepper motor driver IC designed for bipolar stepper motors. It integrates two N-channel power MOSFET H-bridges, current sensing, and regulation circuitry. The device operates from 8V to 45V supply voltage and can deliver up to 2.5A peak current per bridge. It features a simple STEP/DIR interface, microstepping capability (up to 1/32 step), and built-in protection features including overcurrent, overtemperature, and undervoltage lockout. The 28-pin HTSSOP package with exposed pad ensures efficient thermal dissipation.

Detailed Technical Specifications

Key Features

• Dual H-bridge for bipolar stepper motors
• Low RDS(on) for high efficiency
• Advanced microstepping for smooth motion
• Integrated current sensing and regulation
• Protection: overcurrent, overtemperature, undervoltage
• Simple STEP/DIR control interface
• Thermally enhanced HTSSOP package

Target Applications

• 5G base station antenna tilt control
• Automotive dashboard stepper motors
• Industrial automation (CNC, 3D printers)
• Medical equipment (pumps, scanners)
• Office automation (printers, scanners)
• Robotics and motion control
