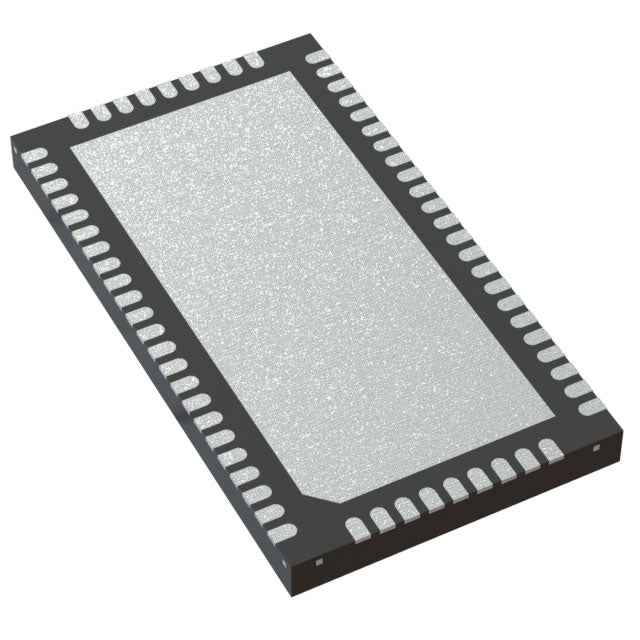

DS160PR810NJXT TI PCIe 4.0 Redriver | 64-WQFN (5.5x10) | 16 Gbps, 8-Channel

Product Overview

The DS160PR810NJXT is a high-performance 8-channel PCIe 4.0 redriver from Texas Instruments, designed to extend signal reach and improve signal integrity in high-speed digital systems. Housed in a compact 64-WQFN (5.5x10 mm) package, it supports data rates up to 16 Gbps per lane, making it ideal for next-generation computing, networking, and storage applications. The device features programmable equalization, output swing, and de-emphasis to compensate for channel losses, ensuring robust communication over long PCB traces or cables.

Detailed Technical Specifications

Key Features

• 8-channel PCIe 4.0 redriver with 16 Gbps data rate per lane
• Programmable continuous-time linear equalization (CTLE) and decision feedback equalization (DFE)
• Adjustable output swing and de-emphasis for optimal signal integrity
• Low power consumption: 1.5W typical
• Small footprint: 64-WQFN (5.5x10 mm) package
• Supports PCIe 4.0, SAS 4.0, and SATA 3.0 protocols
• Integrated termination resistors and AC coupling capacitors
• I2C interface for configuration and status monitoring

Target Applications

• 5G base stations (e.g., remote radio units, baseband units)
• Enterprise switches and routers (e.g., Cisco Nexus 9000 series)
• Data center servers (e.g., Dell PowerEdge R750)
• High-performance computing (HPC) clusters
• Automotive infotainment and ADAS (e.g., Tesla Model S dashboard)
• Storage systems (e.g., NVMe SSDs, RAID controllers)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS160PR810NJXT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
