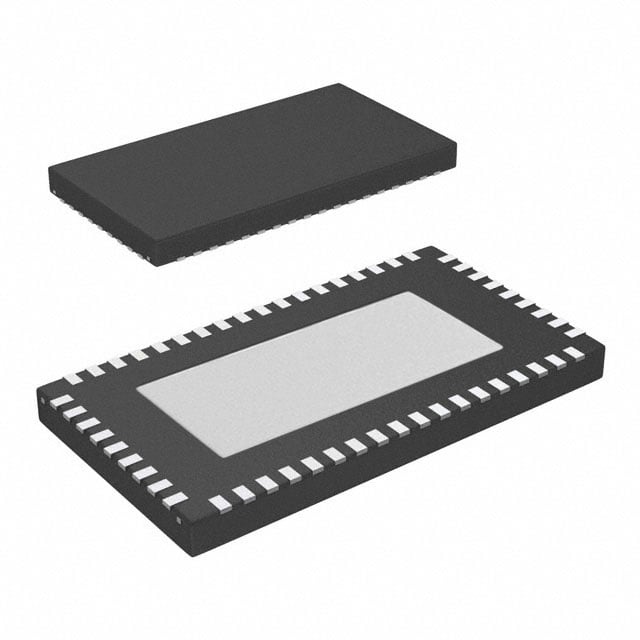

DS50PCI402SQE/NOPB TI PCIe Gen3 Redriver | 54-WQFN (10x5.5) | 4-Lane, 8Gbps

Product Overview

The DS50PCI402SQE/NOPB is a high-performance 4-lane PCI Express Gen3 redriver from Texas Instruments. It is designed to extend the reach of PCIe signals over lossy channels, supporting data rates up to 8 Gbps per lane. The device features programmable equalization, de-emphasis, and output swing to optimize signal integrity. Housed in a compact 54-pin WQFN package (10x5.5 mm), it is ideal for space-constrained applications requiring robust PCIe connectivity.

Detailed Technical Specifications

Key Features

• 4-lane PCIe Gen3 redriver with 8 Gbps per lane
• Programmable continuous-time linear equalization (CTLE) and decision feedback equalization (DFE)
• Adjustable de-emphasis and output swing
• Automatic receiver detection and link training
• Low power consumption: 500 mW typical
• Small footprint: 54-WQFN (10x5.5 mm)
• Industrial temperature range: -40°C to 85°C

Target Applications

• 5G base stations (e.g., for backplane PCIe connectivity)
• Enterprise switches and routers (e.g., Cisco Nexus series)
• Data center servers (e.g., Dell PowerEdge)
• Automotive infotainment and ADAS (e.g., NVIDIA DRIVE platform)
• Industrial PCs and embedded systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS50PCI402SQE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
