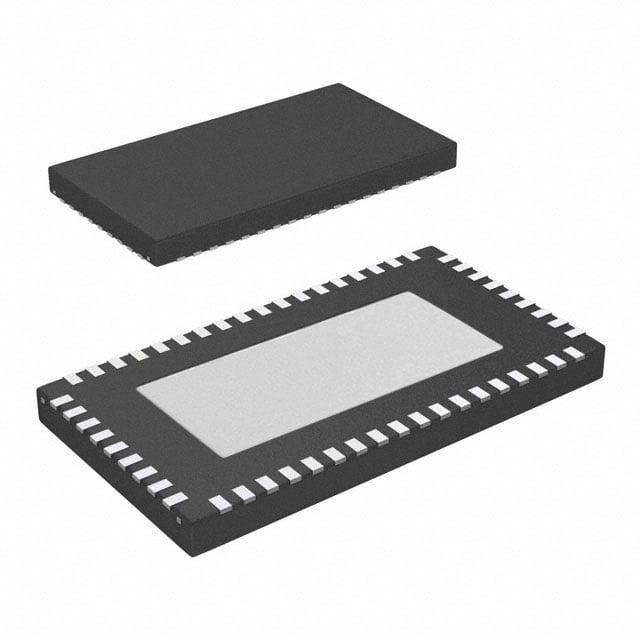

DS80PCI402SQE/NOPB TI PCIe Gen3 Redriver | 54-WQFN (10x5.5) | 8 Gbps, 4-Lane

Product Overview

The DS80PCI402SQE/NOPB from Texas Instruments is a high-performance 4-lane PCIe Gen3 redriver designed to extend the reach of PCIe signals over lossy PCB traces and cables. Operating at data rates up to 8 Gbps per lane, it features programmable equalization, output swing, and de-emphasis to compensate for channel losses. The device is housed in a compact 54-pin WQFN (10x5.5 mm) package, making it ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Supports PCIe Gen1/2/3 and SAS/SATA up to 8 Gbps
• 4 differential lanes with independent channel configuration
• Low latency (< 2 ns) for transparent retiming
• Integrated 50-ohm termination resistors
• Power management with auto-sleep and wake-up
• Pin-strap or SMBus configuration

Target Applications

• 5G base stations (e.g., remote radio units, baseband units)
• Enterprise switches and routers (e.g., Cisco Nexus 9000)
• Data center servers (e.g., Dell PowerEdge R740)
• Automotive infotainment and ADAS (e.g., Tesla Model 3 dashboard)
• Industrial PCs and embedded systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS80PCI402SQE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
