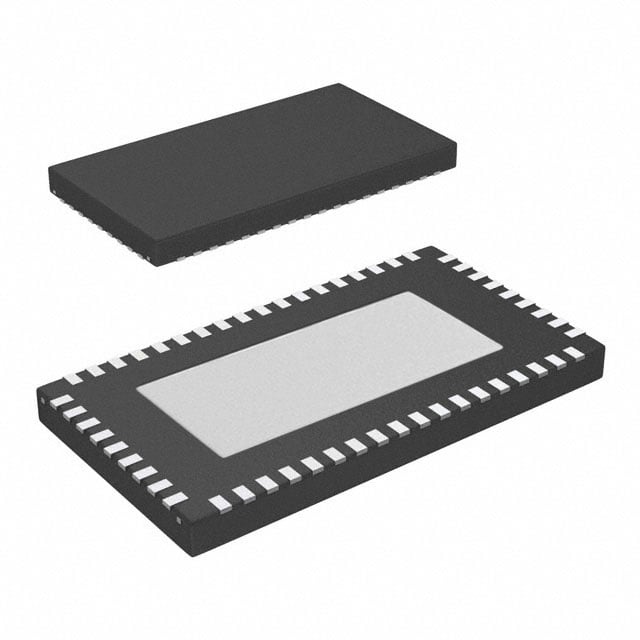

DS80PCI800SQ/NOPB TI PCIe Redriver | 54-WQFN (10x5.5) | 8-Ch, 80Gbps, 0.18um

Product Overview

The DS80PCI800SQ/NOPB is a high-performance 8-channel PCIe Gen3 redriver from Texas Instruments, designed to extend signal reach and improve signal integrity in high-speed digital systems. It supports data rates up to 8 Gbps per lane, compliant with PCIe Gen1/2/3, SAS 2.1/3.0, and SATA 3.0 standards. Housed in a compact 54-WQFN (10x5.5mm) package, it features programmable equalization, output swing, and de-emphasis to compensate for channel losses. The device operates from a single 2.5V or 3.3V supply and includes advanced power management with multiple low-power modes.

Detailed Technical Specifications

Key Features

• 8-channel redriver with 80 Gbps aggregate bandwidth
• Supports PCIe Gen3, SAS 3.0, and SATA 3.0
• Programmable equalization, output swing, and de-emphasis
• Low power consumption with multiple power-saving modes
• Compact 54-WQFN package (10x5.5mm)
• Single supply operation (2.5V or 3.3V)
• Integrated 50-ohm termination resistors
• Hot-plug capable

Target Applications

• 5G base stations (e.g., Nokia AirScale, Ericsson Radio System)
• Enterprise switches and routers (e.g., Cisco Nexus 9000)
• Data center servers (e.g., Dell PowerEdge, HPE ProLiant)
• Storage arrays (e.g., NetApp AFF, Dell EMC PowerStore)
• Automotive infotainment and ADAS (e.g., Tesla Model 3 dashboard)
• Industrial PCs and embedded systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS80PCI800SQ/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
