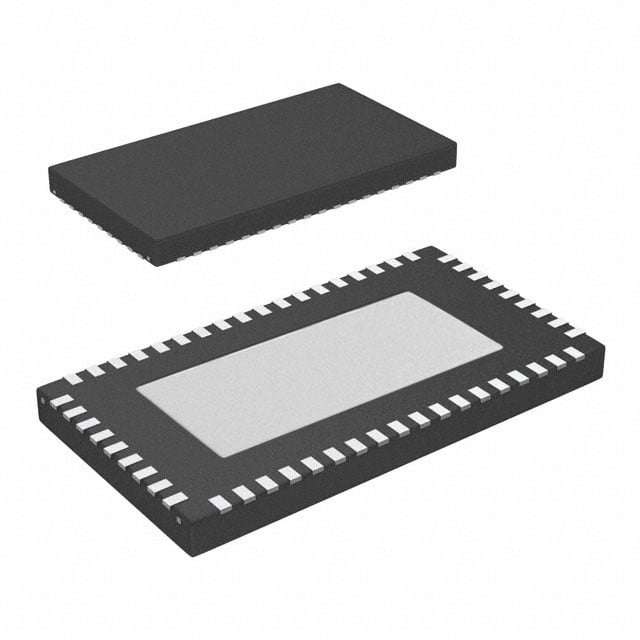

DS80PCI800SQE/NOPB TI PCIe Gen3 Redriver | 54-WQFN (10x5.5) | 8-Channel, 8 Gbps

Product Overview

The DS80PCI800SQE/NOPB from Texas Instruments is a high-performance 8-channel PCIe Gen3 redriver designed to extend the reach of high-speed serial links. It supports data rates up to 8 Gbps per channel, making it ideal for PCIe Gen1/2/3, SATA, and SAS applications. The device features programmable equalization, output swing, and de-emphasis to compensate for channel losses and improve signal integrity. Housed in a compact 54-WQFN (10x5.5 mm) package, it is suitable for space-constrained designs.

Detailed Technical Specifications

Key Features

• 8 independent channels with programmable equalization, output swing, and de-emphasis
• Supports PCIe Gen3 (8 Gbps) and backward compatible with Gen1/2
• Low power consumption: 100 mW per channel typical
• Integrated 50-ohm termination resistors
• Hot-plug capable
• Small footprint: 54-WQFN (10x5.5 mm)

Target Applications

• 5G base stations (e.g., for backplane PCIe links between baseband units and radio units)
• Enterprise switches and routers (e.g., Cisco Nexus 9000 series for PCIe expansion)
• Data center servers (e.g., Dell PowerEdge servers for storage controller connectivity)
• Automotive infotainment and ADAS (e.g., NVIDIA DRIVE platform for high-speed data links)
• Industrial PCs and embedded systems (e.g., Advantech IPC for PCIe slot extension)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS80PCI800SQE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
