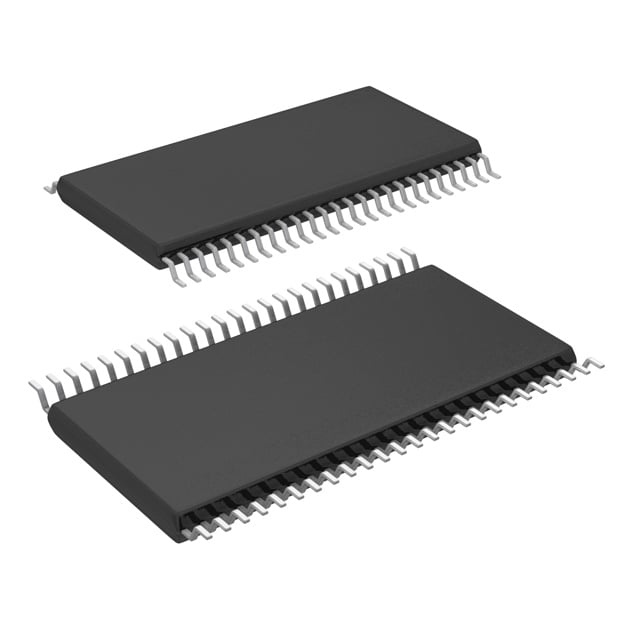

DS90CF564MTD/NOPB TI LVDS SerDes | 48-TSSOP | 18-bit, 65 MHz

Product Overview

The DS90CF564MTD/NOPB is a high-performance LVDS serializer/deserializer (SerDes) from Texas Instruments, designed for high-speed data transmission in automotive and industrial applications. It converts 18-bit parallel data into a serial LVDS stream, reducing interconnect complexity and EMI. Housed in a compact 48-TSSOP package, it supports clock frequencies up to 65 MHz, enabling data rates up to 1.17 Gbps.

Detailed Technical Specifications

Key Features

• 18-bit LVDS SerDes with embedded clock
• Low power consumption: 150 mW typical at 65 MHz
• Up to 1.17 Gbps serial data rate
• Integrated termination resistors
• Wide operating temperature range: -40°C to +85°C
• Flow-through pinout for easy PCB layout
• Compatible with DS90CF561/562/563/564 family

Target Applications

• Automotive infotainment and dashboard displays (e.g., Tesla Model 3 center display)
• 5G base station control and data links (e.g., Nokia AirScale baseband units)
• Industrial cameras and machine vision systems (e.g., Basler ace series)
• Medical imaging equipment (e.g., GE Healthcare ultrasound systems)
• High-resolution video interfaces for drones and robotics

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS90CF564MTD/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
