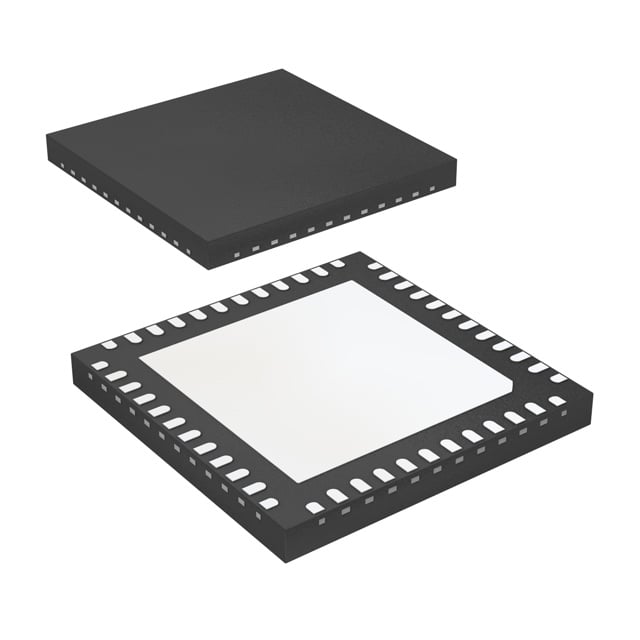

DS90UH925ATRHSJQ1 TI Serializer | 48-WQFN (7x7) | 5-65MHz, 24-bit Color

Product Overview

The DS90UH925ATRHSJQ1 is a high-speed serializer from Texas Instruments, designed for automotive and industrial applications requiring reliable video data transmission over a single differential pair. It converts 24-bit parallel RGB data and control signals into a serialized stream, supporting pixel clocks from 5 MHz to 65 MHz. Housed in a compact 48-WQFN (7x7 mm) package, it operates over a wide temperature range (-40°C to +105°C) and features integrated DC balancing and spread spectrum clocking for reduced EMI.

Detailed Technical Specifications

Key Features

• Single differential pair serialization reduces cable weight and cost
• Integrated DC balancing eliminates need for AC coupling capacitors
• Spread spectrum clocking minimizes EMI emissions
• Supports up to 24-bit color depth for high-quality video
• Built-in self-test (BIST) for link integrity verification
• Compatible with DS90UH926A deserializer for complete link

Target Applications

• Automotive infotainment displays (e.g., Tesla Model 3 center console)
• Digital instrument clusters (e.g., Audi virtual cockpit)
• Surround-view camera systems (e.g., BMW 5 Series 360° camera)
• Industrial machine vision cameras (e.g., Basler ace series)
• Medical imaging equipment (e.g., ultrasound monitors)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS90UH925ATRHSJQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DS90UH925ATRHSJQ1 是德州儀器推出的高速串行器，專為汽車和工業應用設計，可通過單一差分對可靠傳輸視頻數據。它將24位並行RGB數據和控制信號轉換為串行流，支持5 MHz至65 MHz的像素時鐘。採用緊湊的48-WQFN（7x7 mm）封裝，工作溫度範圍為-40°C至+105°C，並集成直流平衡和展頻時鐘以降低EMI。

詳細技術參數

核心特性

• 單差分對串行化，減少線纜重量和成本
• 集成直流平衡，無需交流耦合電容
• 展頻時鐘降低EMI輻射
• 支持高達24位色彩深度，實現高質量視頻
• 內建自測試（BIST）用於鏈路完整性驗證
• 與DS90UH926A解串器兼容，構成完整鏈路

典型應用場景

• 汽車信息娛樂顯示（例如特斯拉Model 3中控屏）
• 數字儀表盤（例如奧迪虛擬座艙）
• 環視攝像頭系統（例如寶馬5系360°攝像頭）
• 工業機器視覺相機（例如Basler ace系列）
• 醫療成像設備（例如超聲監視器）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DS90UH925ATRHSJQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
