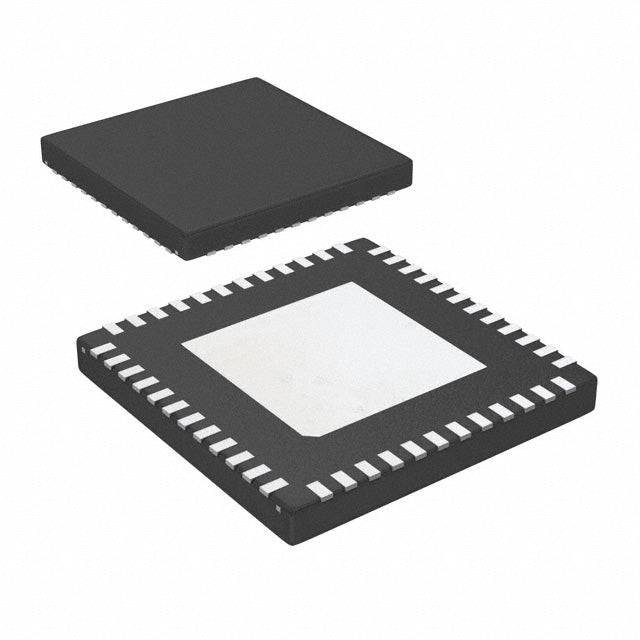

DS99R105SQX/NOPB TI Deserializer | 48-WQFN (7x7) | 5-65MHz, 24-bit LVDS

Product Overview

The DS99R105SQX/NOPB is a high-speed deserializer from Texas Instruments, designed to convert a serialized LVDS data stream back into 24-bit parallel data. It operates over a wide frequency range of 5 MHz to 65 MHz, supporting data rates up to 1.56 Gbps. Housed in a compact 48-pin WQFN (7x7 mm) package, it is ideal for applications requiring high bandwidth and low EMI. The device features integrated termination resistors, DC-balancing, and programmable output drive strength, making it suitable for long-distance transmission over twisted-pair cables.

Detailed Technical Specifications

Key Features

• Up to 1.56 Gbps serial data rate
• Integrated DC-balancing for AC-coupled links
• Programmable output drive strength
• Built-in termination resistors
• Low power consumption (150 mW typical)
• Wide operating temperature range
• Small footprint 48-WQFN package

Target Applications

• 5G base station remote radio units
• Automotive camera modules and dashboard displays
• Industrial machine vision systems
• Medical imaging equipment
• Security surveillance cameras

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for DS99R105SQX/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

DS99R105SQX/NOPB 是德州儀器（TI）的一款高速解串器，可將串行 LVDS 數據流轉換回 24 位並行數據。它工作在 5 MHz 至 65 MHz 的寬頻率範圍內，數據率高達 1.56 Gbps。採用緊湊的 48 引腳 WQFN（7x7 mm）封裝，適用於需要高帶寬和低 EMI 的應用。該器件具有集成終端電阻、直流平衡和可編程輸出驅動強度，適合通過雙絞線進行長距離傳輸。

詳細技術參數

核心特性

• 最高 1.56 Gbps 串行數據率
• 集成直流平衡，支持交流耦合鏈路
• 可編程輸出驅動強度
• 內置終端電阻
• 低功耗（典型 150 mW）
• 寬工作溫度範圍
• 小型 48-WQFN 封裝

典型應用場景

• 5G 基站遠程射頻單元
• 汽車攝像頭模塊和儀表板顯示
• 工業機器視覺系統
• 醫療成像設備
• 安防監控攝像頭

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 DS99R105SQX/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
