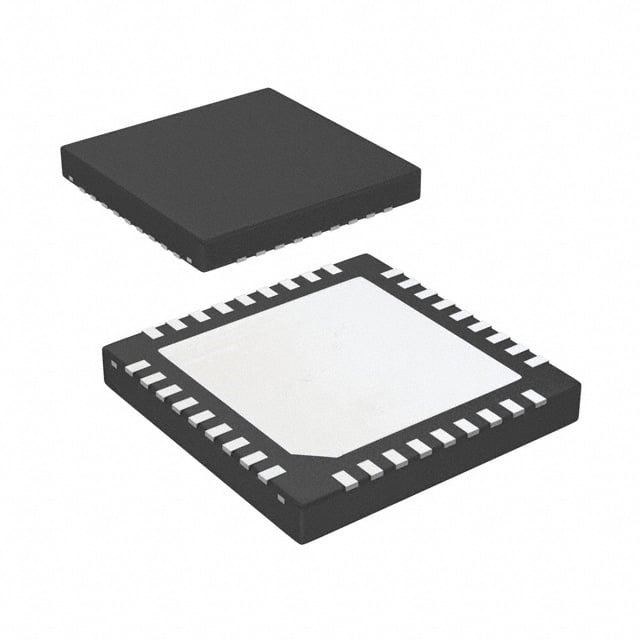

DS99R421ISQ/NOPB TI Serializer | 36-WQFN (6x6) | 5-65MHz, 24-bit Color

Product Overview

The DS99R421ISQ/NOPB is a high-speed serializer from Texas Instruments, designed for FPD-Link II serialization. It converts 24-bit parallel RGB data and control signals into a single serialized data stream, supporting pixel clock frequencies from 5 MHz to 65 MHz. The device is housed in a compact 36-WQFN (6x6 mm) package, making it ideal for space-constrained applications. It features integrated DC balancing, spread spectrum clocking, and programmable drive strength to reduce EMI. The serializer operates over a single differential pair, simplifying cable design and reducing system cost.

Detailed Technical Specifications

Key Features

• Single differential pair serialization reduces cable count and cost
• Supports pixel clock from 5 MHz to 65 MHz for VGA to WXGA resolutions
• Integrated DC balancing for AC-coupled interconnects
• Programmable output drive strength for cable length optimization
• Spread spectrum clocking for EMI reduction
• Built-in self-test (BIST) for link integrity verification
• Low power consumption: 150 mW typical at 65 MHz
• Small 6x6 mm WQFN package

Target Applications

• Automotive infotainment and dashboard displays (e.g., Tesla Model 3 center display)
• Industrial human-machine interfaces (HMIs) for factory automation
• Medical imaging monitors (e.g., GE Healthcare ultrasound displays)
• 5G base station control panels
• Security camera video transmission
• Portable projectors and head-mounted displays
