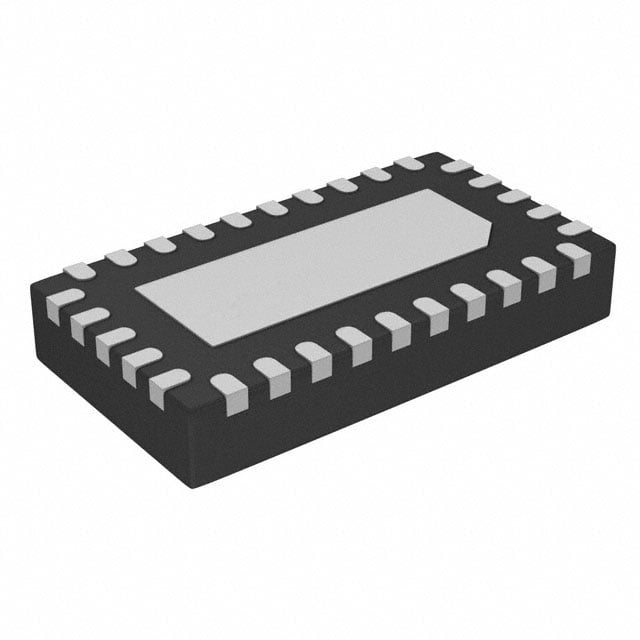

HD3SS460IRNHT TI USB Type-C Crossbar Switch | 30-WQFN (4.5X2.5) | 10Gbps, 2:1/1:2

Product Overview

The HD3SS460IRNHT is a high-speed USB Type-C crossbar switch from Texas Instruments, designed to support USB 3.1 Gen 2 (10 Gbps) and DisplayPort 1.4 (HBR3) signals. It provides a 2:1/1:2 mux/demux function for SuperSpeed USB and sideband signals, enabling flexible routing in USB Type-C applications. The device operates over a wide supply voltage range of 3.0V to 3.6V and is housed in a compact 30-pin WQFN package (4.5mm x 2.5mm).

Detailed Technical Specifications

Key Features

• Supports USB 3.1 Gen 2 (10 Gbps) and DisplayPort 1.4 (HBR3)
• Low insertion loss: -1.5 dB at 5 GHz
• Low crosstalk: -30 dB at 5 GHz
• Integrated sideband switch for SBU signals
• I²C control interface for configuration
• Auto direction detection for flip orientation
• Ultra-small package saves board space

Target Applications

• USB Type-C hubs and docking stations (e.g., Dell WD19)
• Notebook and tablet USB-C ports (e.g., Lenovo ThinkPad X1)
• Smartphones with USB-C (e.g., Samsung Galaxy S24)
• 5G base station control boards
• Automotive infotainment dashboards
• DisplayPort over USB-C adapters
