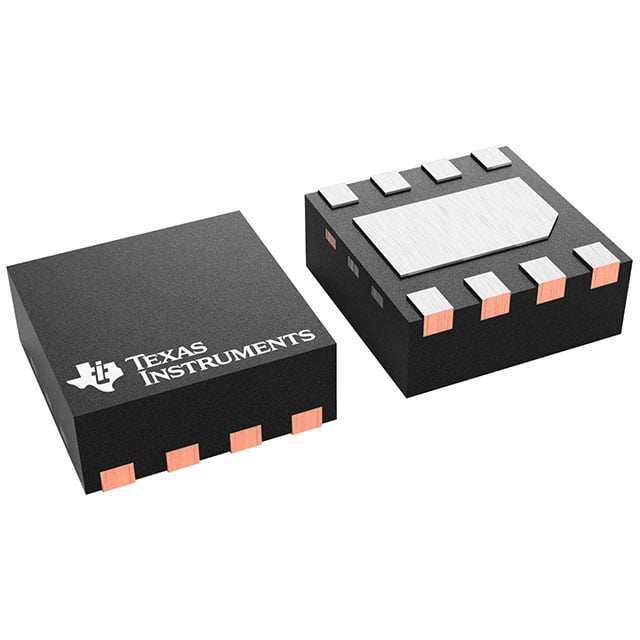

LM2101DSGR TI Gate Driver | 8-WSON (2x2) | 100V, 0.5A/0.8A

Product Overview

The LM2101DSGR is a high-voltage gate driver from Texas Instruments, designed for driving N-channel MOSFETs in half-bridge configurations. It features a bootstrap architecture for high-side drive, with a wide supply voltage range from 10V to 100V. The device is housed in a compact 8-WSON (2x2 mm) package, making it ideal for space-constrained applications. With 0.5A sink and 0.8A source peak drive current, it ensures fast switching and reduced switching losses.

Detailed Technical Specifications

Key Features

• Bootstrap diode integrated for high-side drive
• Under-voltage lockout (UVLO) for both VDD and VBS
• 3.3V and 5V input logic compatible
• Shutdown input for low power consumption
• Cross-conduction prevention logic
• RoHS compliant

Target Applications

• 5G base station power supplies
• Automotive dashboard displays (backlight LED drivers)
• DC-DC converters and inverters
• Motor drives for industrial automation
• Solar microinverters
