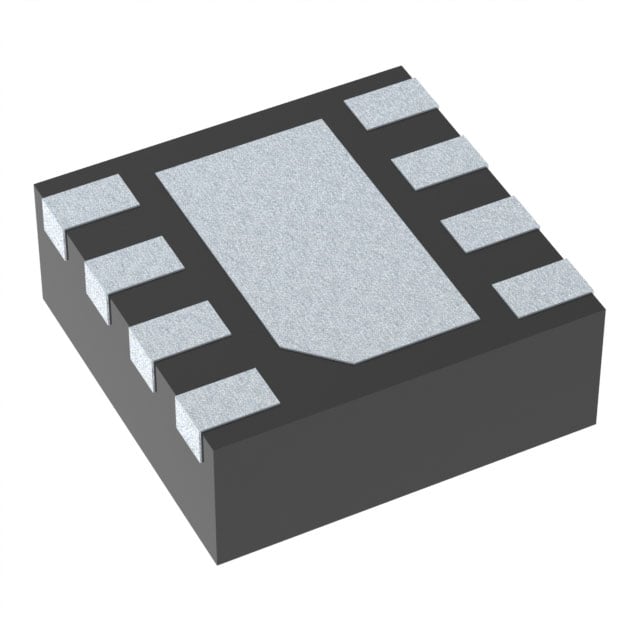

LM27761DSGR TI Inverting Charge Pump | 8-WSON (2x2) | 250mA, 2.7V-5.5V

Product Overview

The LM27761DSGR is a high-performance inverting charge pump from Texas Instruments, designed to generate a regulated negative output voltage from a positive input supply. Housed in a compact 8-WSON (2x2) package, this device delivers up to 250mA output current with excellent efficiency and low ripple. It operates over a wide input voltage range of 2.7V to 5.5V, making it suitable for battery-powered and industrial applications. The LM27761DSGR integrates a low-dropout regulator (LDO) post-regulator to provide a clean, low-noise negative rail, essential for precision analog circuits.

Detailed Technical Specifications

Key Features

• Integrated LDO post-regulator for low-noise output
• High efficiency: up to 85%
• Low quiescent current: 40µA
• Small footprint: 8-WSON (2x2mm)
• Adjustable output voltage
• Overcurrent and overtemperature protection
• Enable pin for power sequencing

Target Applications

• 5G base station power supplies (e.g., negative rail for GaN amplifiers)
• Automotive dashboard displays (e.g., TFT-LCD bias supply)
• Portable medical devices (e.g., glucose meters, patient monitors)
• Industrial sensor interfaces (e.g., pressure transmitters)
• Audio equipment (e.g., headphone amplifiers requiring negative rail)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM27761DSGR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
