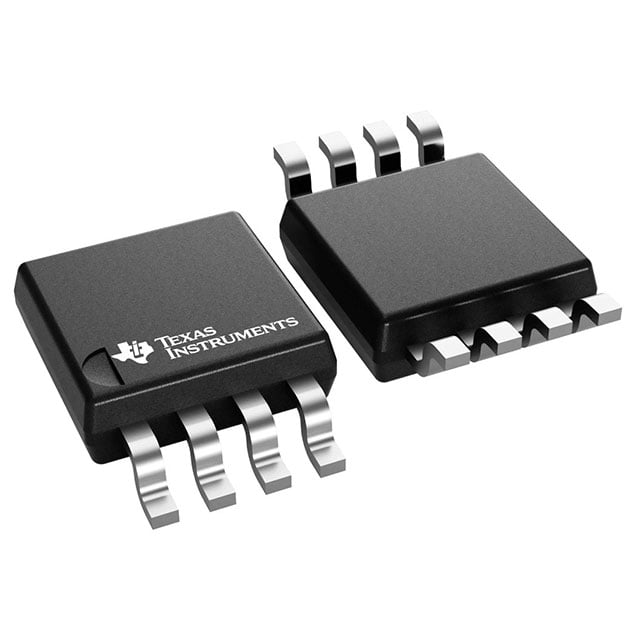

LM2936QMM-3.3/NOPB TI LDO Regulator | 8-VSSOP | 3.3V Output, 50mA

Product Overview

The LM2936QMM-3.3/NOPB is a low-dropout (LDO) voltage regulator from Texas Instruments, offering a fixed 3.3V output with a maximum output current of 50mA. Housed in an 8-pin VSSOP package, this device is designed for automotive and industrial applications requiring low quiescent current and high reliability. With a dropout voltage of only 200mV at 50mA load, it ensures efficient regulation even under low input voltage conditions. The LM2936QMM-3.3/NOPB features reverse battery protection, short-circuit protection, and thermal shutdown, making it a robust choice for power-sensitive designs.

Detailed Technical Specifications

Key Features

• Fixed 3.3V output with ±2% accuracy
• Ultra-low quiescent current: 15µA typical
• Low dropout voltage: 200mV at 50mA
• Wide input voltage range: 4V to 40V
• Reverse battery protection
• Short-circuit and thermal shutdown protection
• Automotive grade: AEC-Q100 qualified
• Small 8-VSSOP package for space-constrained designs

Target Applications

The LM2936QMM-3.3/NOPB is ideal for automotive electronics such as engine control units (ECUs), infotainment systems, and dashboard displays. It is also suitable for industrial control systems, 5G base station power management, battery-powered equipment, and IoT devices requiring low standby power. Specific examples include powering sensors in automotive ADAS, microcontroller supplies in portable medical devices, and always-on circuits in smart meters.

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM2936QMM-3.3/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LM2936QMM-3.3/NOPB 是德州儀器（TI）推出的低壓差線性穩壓器（LDO），提供固定的 3.3V 輸出，最大輸出電流為 50mA。該器件採用 8 引腳 VSSOP 封裝，專為汽車和工業應用設計，具有低靜態電流和高可靠性。在 50mA 負載下，壓差電壓僅為 200mV，確保在低輸入電壓條件下也能高效穩壓。LM2936QMM-3.3/NOPB 具備反接保護、短路保護和熱關斷功能，是電源敏感型設計的穩健選擇。

詳細技術參數

核心特性

• 固定 3.3V 輸出，精度 ±2%
• 超低靜態電流：典型值 15µA
• 低壓差電壓：50mA 時僅 200mV
• 寬輸入電壓範圍：4V 至 40V
• 反接電池保護
• 短路和熱關斷保護
• 汽車級認證：AEC-Q100
• 小型 8-VSSOP 封裝，節省空間

典型應用場景

LM2936QMM-3.3/NOPB 適用於汽車電子，如發動機控制單元（ECU）、信息娛樂系統和儀表盤顯示。它還適用於工業控制系統、5G 基站電源管理、電池供電設備以及需要低待機功耗的物聯網設備。具體應用包括為汽車 ADAS 中的傳感器供電、為便攜式醫療設備中的微控制器供電，以及為智能電表中的常開電路供電。

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LM2936QMM-3.3/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
