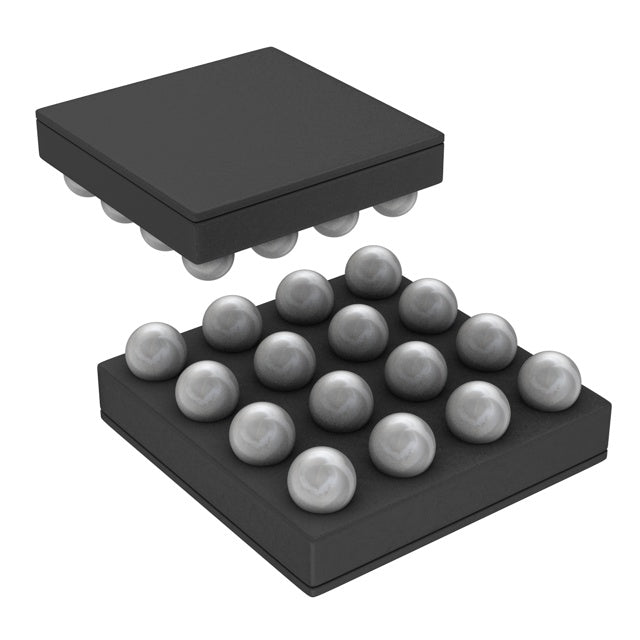

LM3559TLE/NOPB TI LED Driver | 16-DSBGA | 2.5V-5.5V, 1.5A Flash

Product Overview

The LM3559TLE/NOPB is a high-power, synchronous boost LED driver from Texas Instruments, designed to drive up to 1.5A of flash LED current for camera flash applications. It operates from a 2.5V to 5.5V input voltage range, making it suitable for single-cell Li-Ion battery-powered devices. The device features a 2MHz fixed-frequency PWM boost converter with integrated 1.5A switch, providing high efficiency and small solution size. The 16-DSBGA package enables compact designs for space-constrained applications.

Detailed Technical Specifications

Key Features

• High output current: 1.5A flash LED drive
• Wide input voltage range: 2.5V to 5.5V
• 2MHz fixed switching frequency for small external components
• Integrated 1.5A switch with low RDS(on)
• I2C-compatible interface for flexible control
• Programmable flash and torch modes
• Over-temperature and over-current protection
• Small 16-DSBGA package (2.0mm x 2.0mm)

Target Applications

• Smartphone camera flash (e.g., iPhone 14, Samsung Galaxy S23)
• Tablet camera flash (e.g., iPad Pro)
• Digital still cameras (e.g., Canon PowerShot)
• Portable medical devices (e.g., otoscope, dermatoscope)
• 5G base station indicator LEDs
• Automotive dashboard backlighting

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM3559TLE/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
