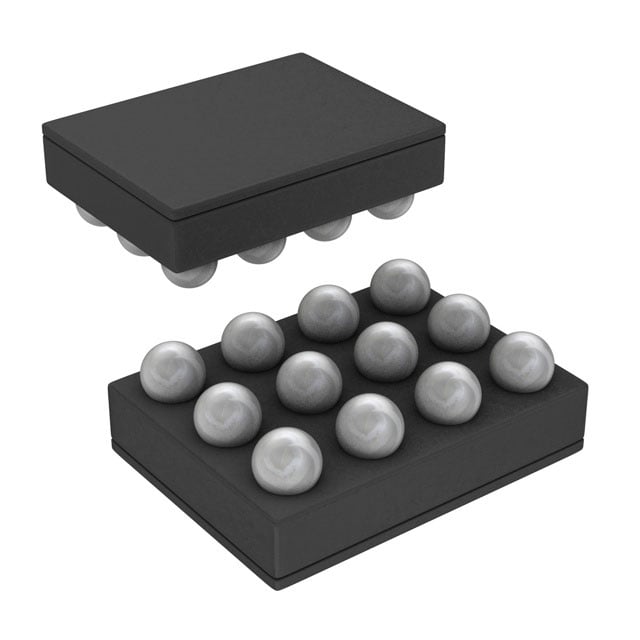

LM3630ATME TI LED Driver | 12-DSBGA (1.64X1.24) | 2-Channel, 30mA/Channel

Product Overview

The LM3630ATME is a high-efficiency, dual-channel LED driver from Texas Instruments, designed for backlighting applications in portable devices. It integrates a boost converter with current sinks to drive up to two strings of LEDs with a total current of up to 60 mA. The device operates from a single Li-Ion battery input (2.7V to 5.5V) and provides a regulated output voltage up to 22V. The LM3630ATME features I2C-compatible interface for brightness control and includes advanced features such as adaptive voltage scaling, phase-shifted PWM dimming, and fault protection. Housed in a compact 12-DSBGA (1.64mm x 1.24mm) package, it is ideal for space-constrained applications.

Detailed Technical Specifications

Key Features

• Dual-channel LED driver with up to 30 mA per channel
• Integrated boost converter with adaptive voltage scaling for efficiency
• I2C-controlled brightness with 256-step PWM dimming
• Phase-shifted PWM to reduce audible noise and ripple
• Low quiescent current (1.5 µA shutdown)
• Built-in overvoltage, overcurrent, and thermal protection
• Small 12-DSBGA package (1.64mm x 1.24mm)

Target Applications

• Smartphone and tablet LCD backlighting
• Portable media players and GPS devices
• Automotive dashboard displays and infotainment systems
• Industrial handheld terminals and barcode scanners
• 5G base station status indicator panels
• Wearable devices with small displays

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM3630ATME. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
