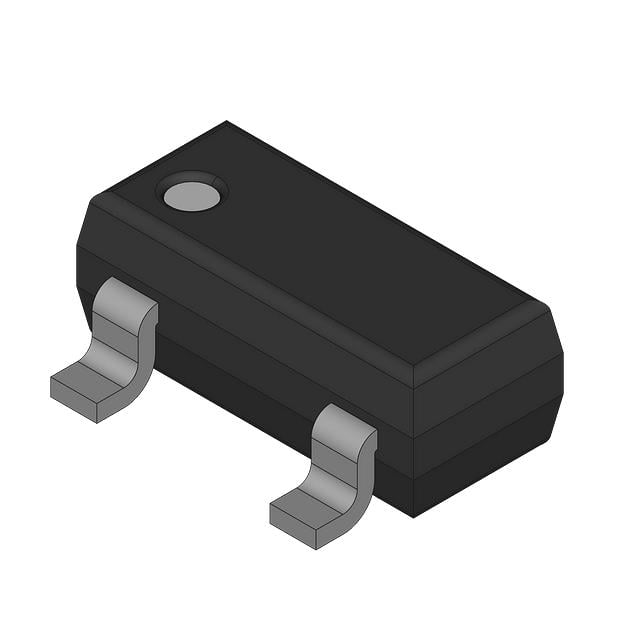

LM4040DIM3-2.5 TI Precision Micropower Shunt Voltage Reference | SOT-23-3 | 2.5V, ±1%

Product Overview

The LM4040DIM3-2.5 from Texas Instruments is a precision micropower shunt voltage reference designed for space-constrained applications. Housed in a compact SOT-23-3 package, it provides a stable 2.5V output with an initial accuracy of ±1% and a low temperature coefficient of 100 ppm/°C (max). Operating over a wide current range from 45 µA to 15 mA, it is ideal for battery-powered and portable devices where power efficiency is critical. The device requires no external capacitor for stability, simplifying design and reducing board space.

Detailed Technical Specifications

Key Features

• Precision 2.5V output with ±1% initial tolerance
• Low temperature coefficient: 100 ppm/°C (max)
• Wide operating current: 45 µA to 15 mA
• No external capacitor required for stability
• Low output impedance: 0.5 Ω (typ)
• Low noise: 35 µVrms (typ) over 10 Hz to 10 kHz
• Compact SOT-23-3 package for space-constrained designs

Target Applications

• Portable and battery-powered equipment (e.g., handheld multimeters, portable medical devices)
• Data acquisition systems (e.g., ADC reference in industrial sensors)
• Automotive electronics (e.g., dashboard displays, infotainment systems)
• 5G base station power management (e.g., reference for voltage regulators)
• Industrial process control (e.g., PLC analog input modules)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM4040DIM3-2.5. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
