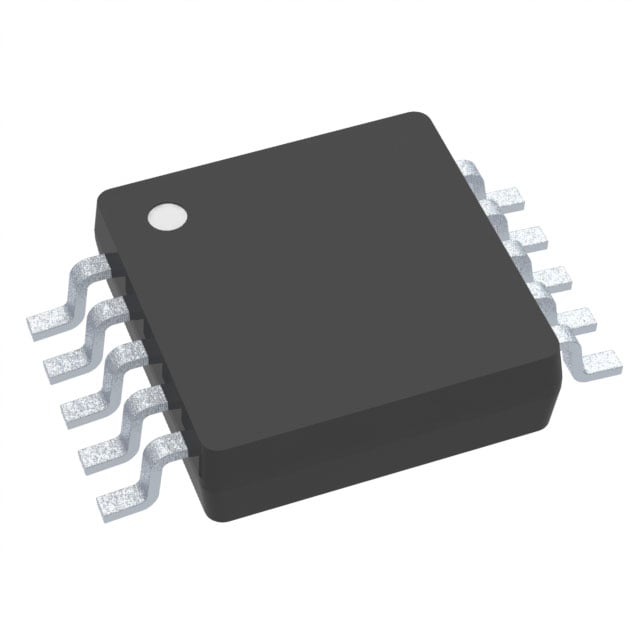

LM5020MMX-2/NOPB TI PWM Controller | 10-VSSOP | 13V-100V Input, 1MHz

Product Overview

The LM5020MMX-2/NOPB is a high-voltage, current-mode PWM controller from Texas Instruments, designed for isolated power supply applications. It operates from an input voltage range of 13V to 100V, making it suitable for industrial and telecom systems. The device features a programmable switching frequency up to 1MHz, integrated high-voltage startup regulator, and robust protection features including cycle-by-cycle current limiting, hiccup mode short-circuit protection, and thermal shutdown. Housed in a compact 10-VSSOP package, it enables efficient and reliable power conversion in space-constrained designs.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 13V to 100V
• Programmable switching frequency up to 1MHz
• Integrated high-voltage startup regulator
• Current-mode control for fast transient response
• Cycle-by-cycle current limiting and hiccup mode short-circuit protection
• Thermal shutdown with hysteresis
• Low shutdown current (<10µA)
• Available in 10-VSSOP package

Target Applications

• Telecom power supplies (e.g., 48V base station power modules)
• Industrial power converters (e.g., PLC power supplies)
• Automotive systems (e.g., 24V truck dashboard power)
• Isolated DC-DC converters for 5G base stations
• LED lighting drivers (e.g., street light power supplies)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM5020MMX-2/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
