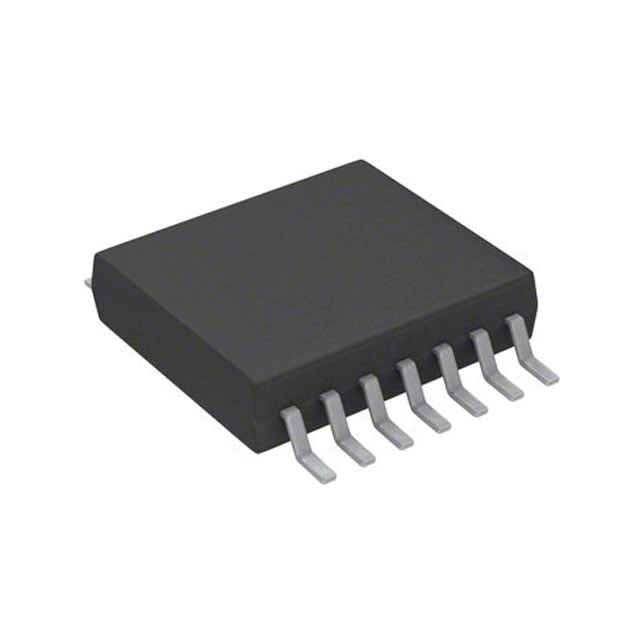

LM5156HQPWPRQ1 TI DC-DC Controller | 14-HTSSOP | 2.2MHz, 1.5A Gate Driver

Product Overview

The LM5156HQPWPRQ1 is a high-performance, automotive-grade, non-synchronous boost controller from Texas Instruments. It is designed for wide input voltage range applications, supporting inputs from 2.2V to 16V (with external bias up to 50V). The device features a 1.5A peak gate driver and operates at a programmable switching frequency up to 2.2MHz, enabling compact power solutions. Housed in a 14-pin HTSSOP package with PowerPAD for enhanced thermal performance, this controller is ideal for automotive and industrial power systems requiring high efficiency and reliability.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 2.2V to 16V (up to 50V with external bias)
• Programmable switching frequency up to 2.2MHz
• 1.5A peak gate driver for external MOSFET
• Low shutdown current: 2.5µA typical
• Integrated soft-start and frequency synchronization
• Protection: overvoltage, overcurrent, thermal shutdown
• Automotive AEC-Q100 qualified
• Available in 14-HTSSOP package with PowerPAD

Target Applications

• Automotive infotainment and cluster power supplies
• 5G base station remote radio units
• Industrial motor drives and PLCs
• Battery-powered equipment (e.g., power tools)
• LED lighting systems
• USB Power Delivery (PD) sources

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM5156HQPWPRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
