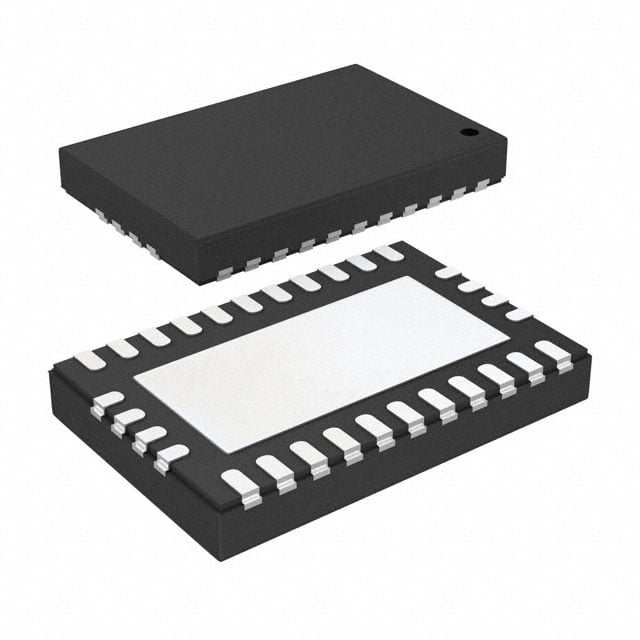

LM76002QRNPTQ1 TI Switching Voltage Regulator | 30-WQFN (6x4) | 3.5V-60V, 2A

Product Overview

The LM76002QRNPTQ1 is a high-performance step-down (buck) switching voltage regulator from Texas Instruments, designed for automotive and industrial applications. It operates over a wide input voltage range of 3.5V to 60V and delivers up to 2A of continuous output current. Housed in a compact 30-pin WQFN package (6mm x 4mm), this device integrates high-side and low-side MOSFETs, requiring minimal external components. The regulator features a fixed switching frequency of 2.1 MHz, enabling small external inductor and capacitor sizes. With built-in protection features such as overcurrent, overtemperature, and undervoltage lockout, the LM76002QRNPTQ1 ensures reliable operation in harsh environments.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 3.5V to 60V
• 2A continuous output current
• Integrated high-side and low-side MOSFETs
• Fixed 2.1 MHz switching frequency
• High efficiency up to 95%
• Adjustable output voltage
• Built-in overcurrent, overtemperature, and undervoltage lockout protection
• Soft-start for inrush current limiting
• Automotive qualified (AEC-Q100)

Target Applications

• Automotive infotainment systems (e.g., dashboard displays, head units)
• Advanced driver-assistance systems (ADAS) cameras and sensors
• 5G base station power supplies
• Industrial automation and control systems
• Battery-powered equipment
• Telecom and networking equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LM76002QRNPTQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
