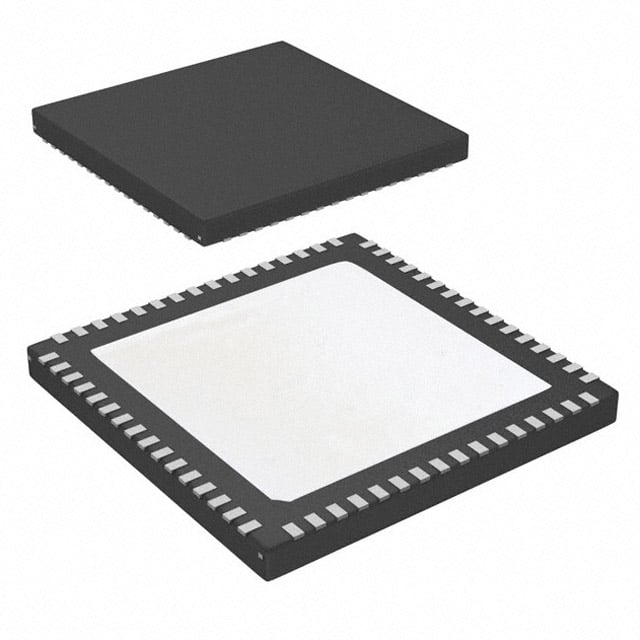

LMK04228NKDT TI Clock Jitter Cleaner | 64-WQFN (9x9) | Ultra-Low Jitter, Dual PLL

Product Overview

The LMK04228NKDT from Texas Instruments is a high-performance clock jitter cleaner and frequency synthesizer designed for demanding applications requiring ultra-low phase noise and jitter. It integrates dual PLLs, a voltage-controlled oscillator (VCO), and programmable loop filters to provide flexible clock generation and cleaning. The device operates over a wide frequency range and supports multiple output formats including LVDS, LVPECL, and LVCMOS. Housed in a compact 64-pin WQFN (9x9 mm) package, it is ideal for space-constrained designs.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: 45 fs RMS typical (12 kHz – 20 MHz)
• Dual PLL architecture with integrated VCO
• Programmable loop bandwidth for jitter cleaning
• Supports multiple output standards: LVDS, LVPECL, HCSL, LVCMOS
• Integrated voltage regulators for improved PSRR
• SPI interface for configuration
• Holdover mode for holdover applications

Target Applications

• 5G base stations (e.g., massive MIMO, remote radio heads)
• Wireless infrastructure (e.g., small cells, backhaul)
• Data center switches and routers
• Test and measurement equipment (e.g., oscilloscopes, signal generators)
• Medical imaging systems (e.g., MRI, CT scanners)
• Industrial automation and control

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK04228NKDT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
