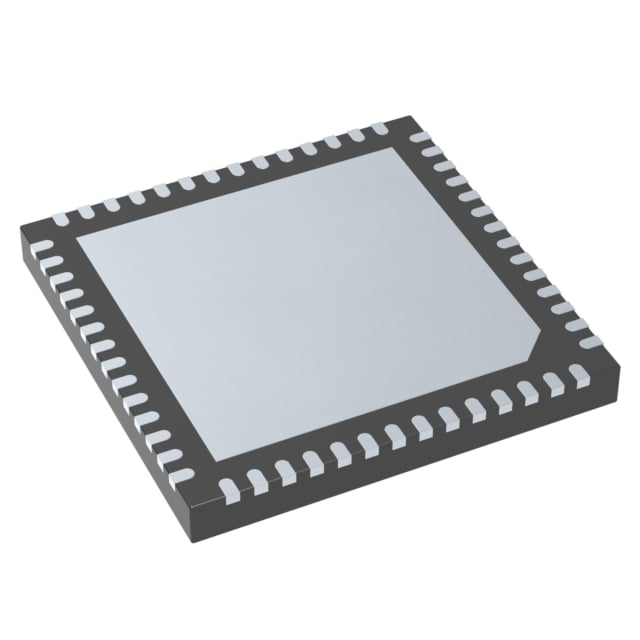

LMK04610RTQR TI Clock Generator | 56-QFN (8x8) | 15 Outputs, Jitter Cleaner

Product Overview

The LMK04610RTQR from Texas Instruments is a high-performance clock generator and jitter cleaner designed for demanding applications such as 5G base stations, data converters, and networking equipment. It features 15 clock outputs with ultra-low jitter, supporting frequencies up to 3.2 GHz. The device integrates a dual-loop PLL architecture with a voltage-controlled oscillator (VCO) and provides flexible output formats including LVDS, LVPECL, and LVCMOS. Housed in a compact 56-pin QFN (8x8 mm) package, it offers excellent phase noise performance and programmability via SPI interface.

Detailed Technical Specifications

Key Features

• Ultra-low jitter: 45 fs RMS (12 kHz to 20 MHz)
• Dual-loop PLL with integrated VCO
• 15 differential or LVCMOS outputs
• Supports jitter cleaning and frequency synthesis
• Programmable output formats: LVDS, LVPECL, LVCMOS
• SPI-configurable for flexible system integration
• Industrial temperature range

Target Applications

• 5G base stations (e.g., Massive MIMO, remote radio units)
• Wireless infrastructure (e.g., small cells, repeaters)
• Data converters (ADC/DAC clocking)
• Networking equipment (e.g., switches, routers)
• Test and measurement instruments
• Medical imaging systems

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK04610RTQR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMK04610RTQR 是德州儀器（TI）推出的一款高性能時鐘發生器和抖動淨化器，專為 5G 基站、數據轉換器和網絡設備等要求嚴苛的應用而設計。它提供 15 個時鐘輸出，具有超低抖動，支持高達 3.2 GHz 的頻率。該器件集成了雙環路 PLL 架構和壓控振盪器（VCO），並提供靈活的輸出格式，包括 LVDS、LVPECL 和 LVCMOS。採用緊湊的 56 引腳 QFN（8x8 mm）封裝，通過 SPI 接口實現可編程性，具有出色的相位噪聲性能。

詳細技術參數

核心特性

• 超低抖動：45 fs RMS（12 kHz 至 20 MHz）
• 雙環路 PLL 集成 VCO
• 15 個差分或 LVCMOS 輸出
• 支持抖動淨化和頻率合成
• 可編程輸出格式：LVDS、LVPECL、LVCMOS
• SPI 可配置，便於系統集成
• 工業級溫度範圍

典型應用場景

• 5G 基站（例如大規模 MIMO、遠程射頻單元）
• 無線基礎設施（例如小基站、中繼器）
• 數據轉換器（ADC/DAC 時鐘）
• 網絡設備（例如交換機、路由器）
• 測試與測量儀器
• 醫療成像系統

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMK04610RTQR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
