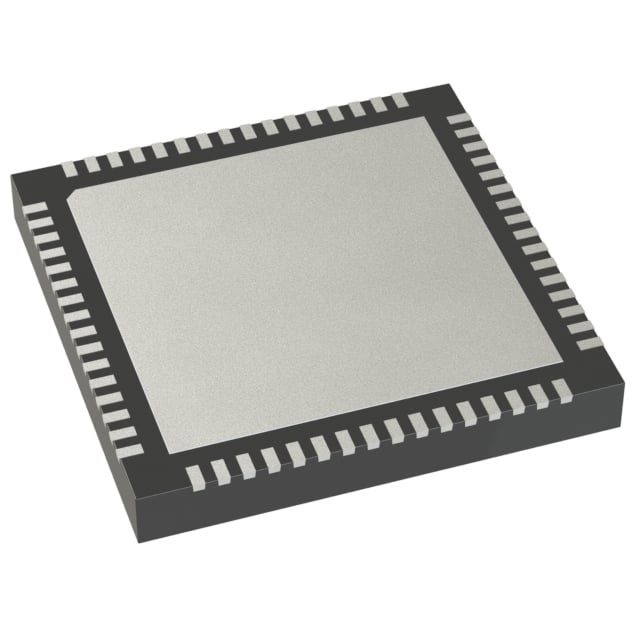

LMK5C33414ARGCTS1 TI Clock Generator | 64-VQFN (9x9) | 14 Outputs, Jitter <100fs
Default Title：$0.00
🧪 SAMPLE SUPPORT
✅ 100% Original & Traceable
🚀 Inquiry Today, Ship Today
🛡️ Escrow.com Secured Payment
Product Overview
The LMK5C33414ARGCTS1 from Texas Instruments is a high-performance clock generator designed for demanding applications requiring ultra-low jitter and multiple output frequencies. It integrates a fractional-N PLL with a VCO and provides up to 14 differential or LVCMOS outputs. The device operates from a single 3.3V supply and is housed in a compact 64-VQFN (9x9 mm) package.
Detailed Technical Specifications
| Parameter | Value |
|---|---|
| Number of Outputs | 14 (up to 8 differential pairs) |
| Output Frequency Range | Up to 1.5 GHz (differential), up to 250 MHz (LVCMOS) |
| RMS Jitter (12 kHz to 20 MHz) | <100 fs |
| PLL Phase Noise at 100 kHz offset | -160 dBc/Hz (typical) |
| Supply Voltage | 3.3V ± 5% |
| Package | 64-VQFN (9x9 mm) |
| Operating Temperature | -40°C to +85°C |
Key Features
- Ultra-low jitter: <100 fs RMS (12 kHz to 20 MHz)
- Fractional-N PLL with integrated VCO
- 14 outputs configurable as differential (LVPECL, LVDS, HCSL) or LVCMOS
- Supports hitless reference switching and holdover
- I2C/SPI programmable
- Small footprint: 64-VQFN (9x9 mm)
Target Applications
- 5G base stations (e.g., Massive MIMO, remote radio units)
- Data center switches and routers (e.g., 400G Ethernet)
- Test and measurement equipment (e.g., oscilloscopes, signal generators)
- Medical imaging systems (e.g., CT scanners, MRI)
- Automotive radar and ADAS (e.g., infotainment, dashboard clusters)
Global Supply Chain & Wholesale Solutions
At Jasin Chip, we provide professional supply chain and wholesale solutions for LMK5C33414ARGCTS1. Our core advantages include:
- 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
- In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
- HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
- Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
- BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.
Quality Assurance & Compliance
Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.
- 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
- RoHS Compliant: All electronic components comply with international environmental and safety standards.
- Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
產品概述
LMK5C33414ARGCTS1 是德州儀器（TI）推出的一款高性能時鐘生成器，專為需要超低抖動和多輸出頻率的苛刻應用而設計。它集成了分數-N PLL 和 VCO，提供多達 14 個差分或 LVCMOS 輸出。該器件由單一 3.3V 電源供電，封裝在緊湊的 64-VQFN（9x9 mm）中。
詳細技術參數
| 參數 | 數值 |
|---|---|
| 輸出數量 | 14（最多 8 對差分） |
| 輸出頻率範圍 | 最高 1.5 GHz（差分），最高 250 MHz（LVCMOS） |
| RMS 抖動（12 kHz 至 20 MHz） | <100 fs |
| PLL 相位噪聲（100 kHz 偏移） | -160 dBc/Hz（典型值） |
| 供電電壓 | 3.3V ± 5% |
| 封裝 | 64-VQFN（9x9 mm） |
| 工作溫度 | -40°C 至 +85°C |
核心特性
- 超低抖動：<100 fs RMS（12 kHz 至 20 MHz）
- 分數-N PLL 集成 VCO
- 14 個輸出可配置為差分（LVPECL、LVDS、HCSL）或 LVCMOS
- 支持無中斷參考切換和保持
- I2C/SPI 可編程
- 小尺寸：64-VQFN（9x9 mm）
典型應用場景
- 5G 基站（例如大規模 MIMO、遠程射頻單元）
- 數據中心交換機和路由器（例如 400G 以太網）
- 測試和測量設備（例如示波器、信號發生器）
- 醫療成像系統（例如 CT 掃描儀、MRI）
- 汽車雷達和 ADAS（例如信息娛樂系統、儀表盤集群）
環球供應鏈與批發合作夥伴方案
在 Jasin Chip，我們為 LMK5C33414ARGCTS1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：
- 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
- 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
- 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
- Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
- BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。
品質保證與合規
Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。
- 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
- 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
- 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。
以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
