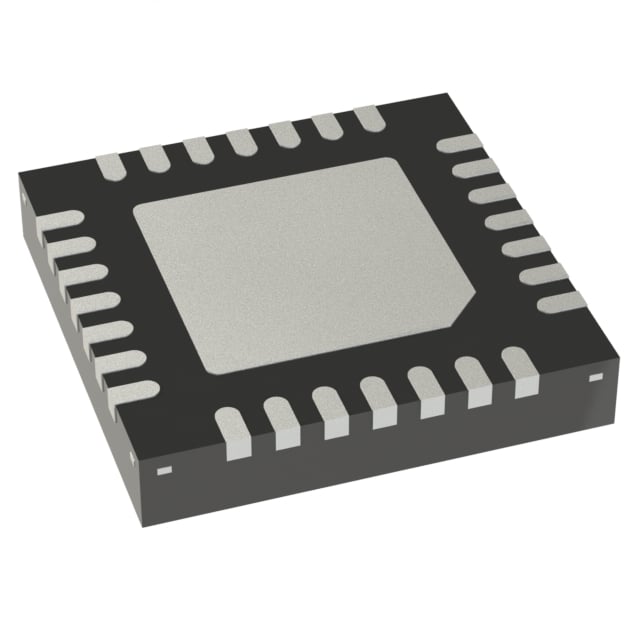

LMKDB1104Z85REXT TI Clock Buffer | 28-VQFN (4x4) | 1:4 Fanout, 85MHz

Product Overview

The LMKDB1104Z85REXT is a high-performance 1:4 fanout clock buffer from Texas Instruments, designed for low-jitter clock distribution in demanding applications. It operates at a maximum frequency of 85 MHz and is housed in a compact 28-VQFN (4x4 mm) package. The device features LVCMOS/LVTTL compatible inputs and outputs, making it ideal for interfacing with a wide range of logic families. With its low additive jitter (typically 0.1 ps RMS) and wide supply voltage range (2.375V to 3.6V), the LMKDB1104Z85REXT ensures reliable clock distribution in systems requiring high timing accuracy.

Detailed Technical Specifications

Key Features

• 1:4 fanout clock buffer with low additive jitter
• Wide supply voltage range: 2.375V to 3.6V
• LVCMOS/LVTTL compatible inputs and outputs
• Maximum frequency: 85 MHz
• Low power consumption
• Small 28-VQFN (4x4 mm) package for space-constrained designs
• Industrial temperature range: -40°C to +85°C

Target Applications

• 5G base stations: clock distribution for FPGAs and ASICs
• Automotive dashboard: clock buffering for infotainment systems
• Data centers: clock fanout for servers and switches
• Industrial automation: timing distribution for PLCs and motor drives
• Test and measurement equipment: low-jitter clock distribution

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMKDB1104Z85REXT. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
