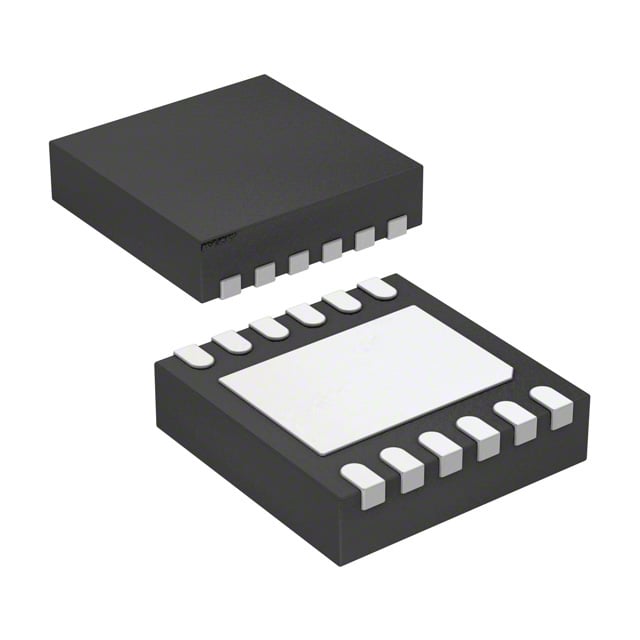

LMR23630FQDRRRQ1 TI Step-Down Converter | 12-SON(3X3) | 36V, 3A

Product Overview

The LMR23630FQDRRRQ1 is a high-performance, automotive-grade step-down (buck) DC-DC converter from Texas Instruments. It integrates a high-side N-channel MOSFET and operates over a wide input voltage range of 4.5V to 36V, making it suitable for a variety of automotive and industrial applications. The device delivers up to 3A of continuous output current with excellent efficiency and thermal performance. Housed in a compact 12-pin SON (3mm x 3mm) package, it is designed for space-constrained applications requiring high reliability.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 4.5V to 36V
• 3A continuous output current
• Adjustable switching frequency (200kHz to 2.2MHz)
• Integrated high-side N-channel MOSFET
• High efficiency up to 95%
• Precision enable input for sequencing
• Power-good output for monitoring
• Overcurrent, overvoltage, undervoltage lockout, and thermal shutdown protection
• Automotive AEC-Q100 qualified
• Compact 12-SON (3mm x 3mm) package

Target Applications

The LMR23630FQDRRRQ1 is ideal for automotive and industrial applications requiring a robust, high-efficiency power supply. Specific examples include:

• 5G base station power supplies
• Automotive infotainment and dashboard systems
• Advanced driver-assistance systems (ADAS)
• Industrial automation and control systems
• Telecommunications equipment
• Battery-powered devices

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMR23630FQDRRRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMR23630FQDRRRQ1 是德州儀器（TI）推出的一款高性能、車規級降壓型 DC-DC 轉換器。它集成了高側 N 溝道 MOSFET，可在 4.5V 至 36V 的寬輸入電壓範圍內工作，適用於各種汽車和工業應用。該器件可提供高達 3A 的連續輸出電流，具有出色的效率和熱性能。採用緊湊的 12 引腳 SON（3mm x 3mm）封裝，專為空間受限且需要高可靠性的應用而設計。

詳細技術參數

核心特性

• 寬輸入電壓範圍：4.5V 至 36V
• 3A 連續輸出電流
• 可調開關頻率（200kHz 至 2.2MHz）
• 集成高側 N 溝道 MOSFET
• 高效率高達 95%
• 精密使能輸入，用於時序控制
• 電源正常輸出，用於監控
• 過流、過壓、欠壓鎖定和熱關斷保護
• 符合 AEC-Q100 汽車標準
• 緊湊的 12-SON（3mm x 3mm）封裝

典型應用場景

LMR23630FQDRRRQ1 非常適合需要穩健、高效電源的汽車和工業應用。具體示例包括：

• 5G 基站電源
• 汽車信息娛樂和儀表板系統
• 高級駕駛輔助系統（ADAS）
• 工業自動化和控制系統
• 電信設備
• 電池供電設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMR23630FQDRRRQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
