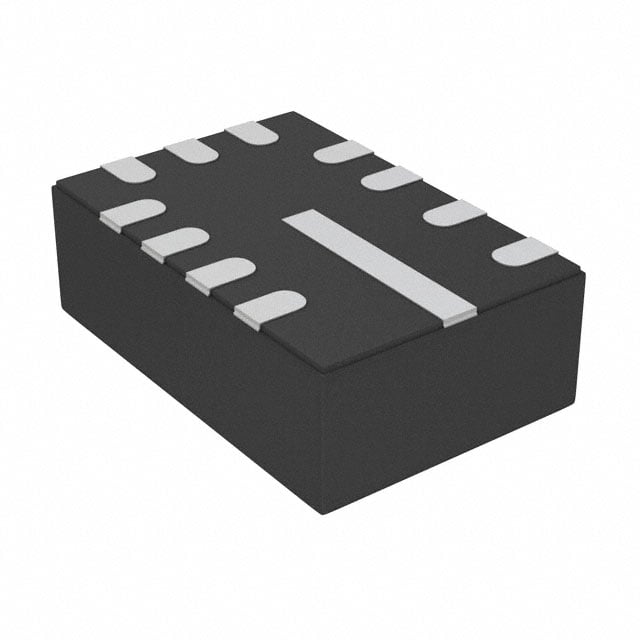

LMR36015AQRNXRQ1 TI Step-Down Converter | 12-VQFN-HR(3x2) | 4.2V-60V, 1.5A

Product Overview

The LMR36015AQRNXRQ1 is a high-performance step-down (buck) DC-DC converter from Texas Instruments, designed for automotive and industrial applications. It operates over a wide input voltage range of 4.2V to 60V, delivering up to 1.5A of continuous output current. The device is housed in a compact 12-pin VQFN-HR package (3mm x 2mm), making it ideal for space-constrained designs. With integrated high-side and low-side MOSFETs, the LMR36015AQRNXRQ1 achieves high efficiency and excellent thermal performance. It features a fixed switching frequency of 2.1 MHz, enabling small external components and fast transient response. The device is AEC-Q100 qualified for automotive applications.

Detailed Technical Specifications

Key Features

• Wide input voltage range: 4.2V to 60V
• 1.5A continuous output current
• Integrated high-side and low-side MOSFETs
• Fixed 2.1 MHz switching frequency
• Low quiescent current: 27 µA
• Adjustable output voltage down to 0.8V
• Internal compensation and soft-start
• Protection: overcurrent, overtemperature, UVLO
• AEC-Q100 qualified for automotive
• Compact 12-VQFN-HR package (3mm x 2mm)

Target Applications

• Automotive infotainment and cluster (e.g., dashboard displays)
• Advanced driver-assistance systems (ADAS) cameras and sensors
• 5G base station power supplies
• Industrial automation and control systems
• Portable and battery-powered equipment
• Telecom and networking equipment

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMR36015AQRNXRQ1. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LMR36015AQRNXRQ1 是德州儀器（TI）推出的一款高性能降壓（buck）DC-DC轉換器，專為汽車和工業應用設計。它支援 4.2V 至 60V 的寬輸入電壓範圍，可提供高達 1.5A 的連續輸出電流。該器件採用緊湊的 12 引腳 VQFN-HR 封裝（3mm x 2mm），非常適合空間受限的設計。LMR36015AQRNXRQ1 集成了高側和低側 MOSFET，實現了高效率和出色的熱性能。它具有 2.1 MHz 的固定開關頻率，可實現小型外部元件和快速瞬態響應。該器件通過 AEC-Q100 認證，適用於汽車應用。

詳細技術參數

核心特性

• 寬輸入電壓範圍：4.2V 至 60V
• 1.5A 連續輸出電流
• 集成高側和低側 MOSFET
• 固定 2.1 MHz 開關頻率
• 低靜態電流：27 µA
• 可調輸出電壓低至 0.8V
• 內部補償和軟啟動
• 保護功能：過流、過溫、欠壓鎖定
• 通過 AEC-Q100 汽車級認證
• 緊湊的 12-VQFN-HR 封裝（3mm x 2mm）

典型應用場景

• 汽車信息娛樂和儀表盤（例如儀表板顯示器）
• 高級駕駛輔助系統（ADAS）攝像頭和傳感器
• 5G 基站電源
• 工業自動化和控制系統
• 便攜式和電池供電設備
• 電信和網絡設備

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LMR36015AQRNXRQ1 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
