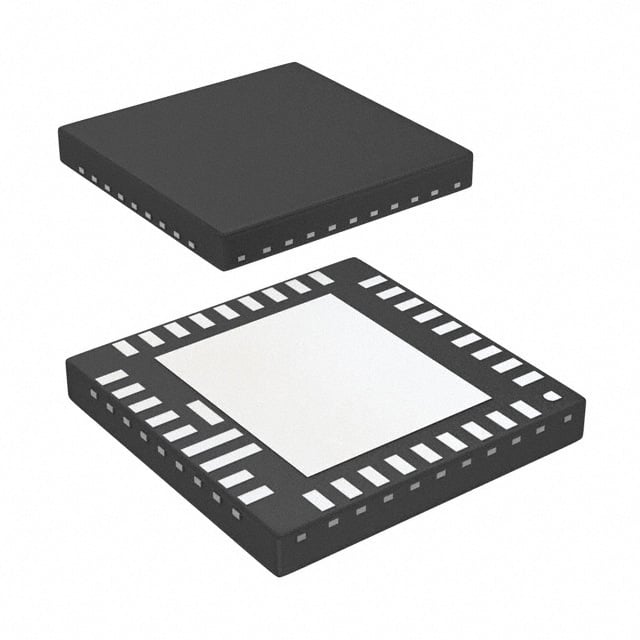

LMX2531LQ1226E/NOPB TI PLL with VCO | 36-WQFN (6x6) | 1226 MHz, 3.3V

Product Overview

The LMX2531LQ1226E/NOPB is a high-performance frequency synthesizer system from Texas Instruments, combining a phase-locked loop (PLL) with an integrated voltage-controlled oscillator (VCO). It operates at a center frequency of 1226 MHz and is designed for low phase noise and low spurious output, making it ideal for demanding RF applications. The device is housed in a compact 36-pin WQFN package (6x6 mm) and operates from a 3.3V supply. It features a programmable charge pump, dual modulus prescaler, and digital lock detect, providing flexible and reliable frequency synthesis.

Detailed Technical Specifications

Key Features

• Integrated PLL and VCO in a single package
• Low phase noise: -110 dBc/Hz at 100 kHz offset
• Programmable charge pump current
• Dual modulus prescaler (8/9, 16/17, 32/33)
• Digital lock detect output
• Power-down mode for power saving
• 3-wire serial interface for programming

Target Applications

• 5G base station local oscillators
• Automotive radar systems (e.g., 77 GHz radar front-end)
• Wireless infrastructure (e.g., LTE small cells)
• Test and measurement equipment (e.g., spectrum analyzers)
• Satellite communication terminals

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMX2531LQ1226E/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
