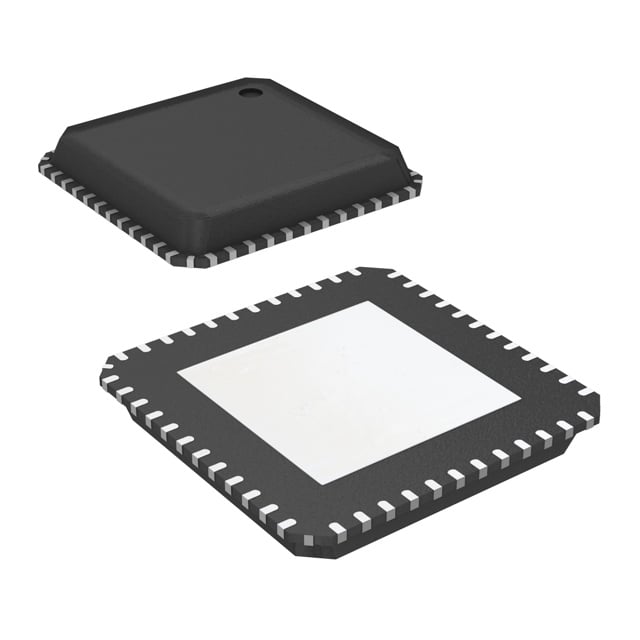

LMX2694SRTCTEP TI Wideband Synthesizer | 48-VQFN(7x7) | 10MHz-15.4GHz, -162dBc/Hz

Product Overview

The LMX2694SRTCTEP is a high-performance, wideband frequency synthesizer from Texas Instruments, designed for demanding RF and microwave applications. It integrates a low-noise phase-locked loop (PLL) with a voltage-controlled oscillator (VCO) covering a frequency range from 10 MHz to 15.4 GHz. Housed in a compact 48-VQFN (7x7 mm) package, this device offers exceptional phase noise performance of -162 dBc/Hz at 100 kHz offset (6 GHz carrier) and supports both integer-N and fractional-N modes. The LMX2694SRTCTEP is ideal for applications requiring low jitter, fast frequency hopping, and wide tuning range.

Detailed Technical Specifications

Key Features

• Wide frequency range: 10 MHz to 15.4 GHz
• Ultra-low phase noise: -162 dBc/Hz at 100 kHz offset (6 GHz)
• Integer-N and fractional-N modes
• Fast frequency hopping: < 20 μs
• Integrated VCO with low pushing/pulling
• Programmable output power
• SPI interface for configuration
• Extended temperature range for industrial applications

Target Applications

• 5G base stations (e.g., massive MIMO transceivers)
• Radar systems (automotive, defense)
• Test and measurement equipment (spectrum analyzers, signal generators)
• Satellite communications (VSAT terminals)
• Wireless infrastructure (microwave backhaul)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LMX2694SRTCTEP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
