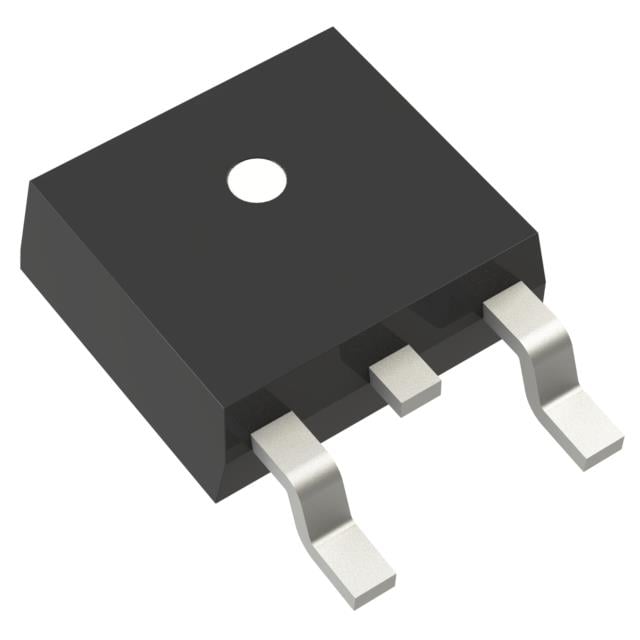

LP38691DT-2.5/NOPB TI LDO Regulator | TO-252-3 | 2.5V Output, 500mA

Product Overview

The LP38691DT-2.5/NOPB is a low-dropout (LDO) linear voltage regulator from Texas Instruments (TI), offering a fixed output voltage of 2.5V with a maximum output current of 500mA. Housed in a TO-252-3 (DPAK) package, this device is designed for applications requiring low dropout voltage, low quiescent current, and high accuracy. It features a dropout voltage of typically 250mV at full load, making it suitable for battery-powered and portable electronics. The LP38691DT-2.5/NOPB also includes thermal shutdown and current limit protection, ensuring reliable operation under fault conditions.

Detailed Technical Specifications

Key Features

• Low dropout voltage: 250mV typical at 500mA load
• Low quiescent current: 55 µA typical
• High output voltage accuracy: ±2%
• Thermal shutdown and current limit protection
• Stable with low ESR ceramic output capacitors (≥1 µF)
• Wide input voltage range: 2.7V to 10V
• Fixed output voltage options available

Target Applications

• 5G base station power management (e.g., powering RF transceivers)
• Automotive dashboard displays and infotainment systems
• Portable battery-powered devices (e.g., medical monitors, handheld instruments)
• Industrial sensors and actuators
• Networking equipment (e.g., routers, switches)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP38691DT-2.5/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP38691DT-2.5/NOPB 是德州儀器 (TI) 推出的一款低壓差 (LDO) 線性穩壓器，提供固定的 2.5V 輸出電壓，最大輸出電流為 500mA。該器件採用 TO-252-3 (DPAK) 封裝，適用於需要低壓差、低靜態電流和高精度的應用。在滿載 500mA 時，典型壓差電壓僅為 250mV，非常適合電池供電和便攜式電子設備。LP38691DT-2.5/NOPB 還具有熱關斷和電流限制保護功能，確保在故障條件下可靠運行。

詳細技術參數

核心特性

• 低壓差電壓：500mA 負載時典型值 250mV
• 低靜態電流：典型值 55 µA
• 高輸出電壓精度：±2%
• 熱關斷和電流限制保護
• 可使用低 ESR 陶瓷輸出電容（≥1 µF）穩定工作
• 寬輸入電壓範圍：2.7V 至 10V
• 提供固定輸出電壓選項

典型應用場景

• 5G 基站電源管理（例如為射頻收發器供電）
• 汽車儀表板顯示器和信息娛樂系統
• 便攜式電池供電設備（例如醫療監護儀、手持儀器）
• 工業傳感器和執行器
• 網絡設備（例如路由器、交換機）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP38691DT-2.5/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
