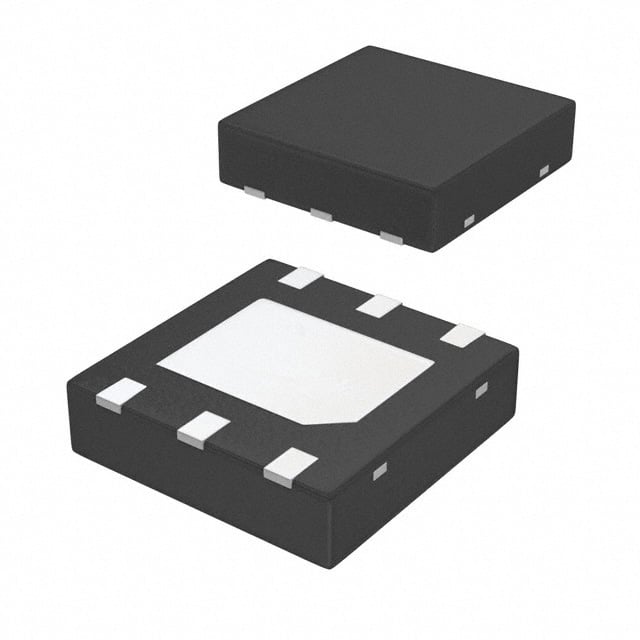

LP38691QSD-3.3/NOPB TI LDO Regulator | 6-WSON (3x3) | 3.3V Output, 500mA

Product Overview

The LP38691QSD-3.3/NOPB is a low-dropout (LDO) linear voltage regulator from Texas Instruments, offering a fixed output voltage of 3.3V with a maximum output current of 500mA. Housed in a compact 6-pin WSON (3x3 mm) package, this device is designed for space-constrained applications requiring high accuracy and low noise. With a dropout voltage of only 120mV at 500mA, it ensures efficient operation even with minimal input-to-output voltage differential. The LP38691 features a low quiescent current of 30µA (typical) and a wide input voltage range from 2.7V to 10V, making it suitable for battery-powered and industrial systems. It includes built-in protection features such as overcurrent and thermal shutdown, enhancing system reliability.

Detailed Technical Specifications

Key Features

• Fixed 3.3V output with ±2% accuracy
• Low dropout voltage: 120mV typical at 500mA
• Low quiescent current: 30µA typical
• Wide input voltage range: 2.7V to 10V
• Low output noise: 30µVrms
• High PSRR: 60dB at 1kHz
• Overcurrent and thermal shutdown protection
• Stable with ceramic output capacitors (1µF minimum)
• Small 6-pin WSON package (3x3 mm)

Target Applications

• 5G base station power management (e.g., powering RF transceivers)
• Automotive dashboard displays and infotainment systems
• Portable battery-powered devices (e.g., medical monitors, handheld instruments)
• Industrial sensors and IoT modules
• FPGA and DSP core voltage regulation

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP38691QSD-3.3/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
