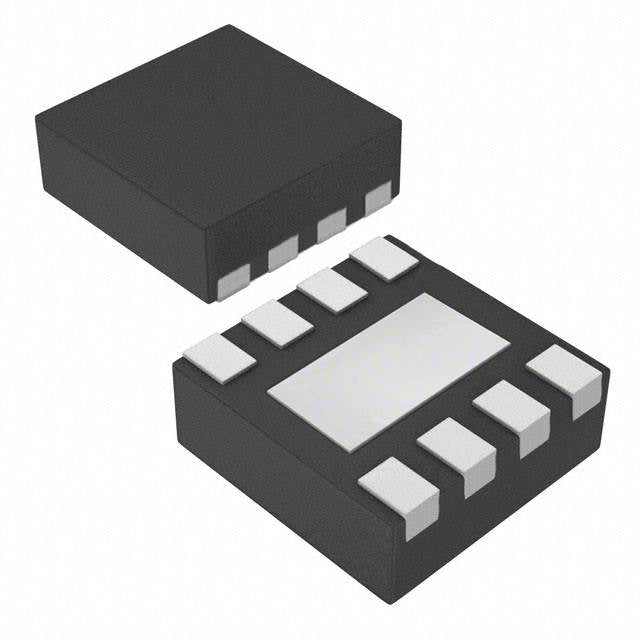

LP3982ILDX-ADJ/NOPB TI LDO Regulator | 8-WSON (3x2.5) | 2.5V-6V Input, 300mA Output

Product Overview

The LP3982ILDX-ADJ/NOPB is a high-performance, low-dropout (LDO) voltage regulator from Texas Instruments (TI). It offers an adjustable output voltage from 1.25V to 5.5V with a maximum output current of 300mA. Housed in an 8-pin WSON package (3mm x 2.5mm), this device is designed for space-constrained applications requiring low noise and high power supply rejection ratio (PSRR). The LP3982 features a low dropout voltage of typically 120mV at 300mA load, making it ideal for battery-powered systems. Its enable pin allows for power sequencing and shutdown control, reducing quiescent current to less than 1µA when disabled.

Detailed Technical Specifications

Key Features

• Adjustable output voltage from 1.25V to 5.5V
• Low dropout voltage: 120mV at 300mA
• High PSRR: 60dB at 1kHz
• Low output noise: 30µV_RMS
• Enable pin for power sequencing
• Thermal shutdown and current limit protection
• Stable with ceramic output capacitors (1µF to 10µF)
• Small footprint: 8-WSON package (3mm x 2.5mm)

Target Applications

• 5G base station power management (e.g., supplying 1.8V to RF transceivers)
• Automotive dashboard displays (e.g., powering 3.3V for infotainment processors)
• Portable medical devices (e.g., glucose meters requiring low noise 2.5V supply)
• Industrial sensors (e.g., 4-20mA loop-powered transmitters)
• Battery-powered IoT modules (e.g., Bluetooth Low Energy devices)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP3982ILDX-ADJ/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP3982ILDX-ADJ/NOPB 是德州儀器（TI）推出的一款高性能低壓差線性穩壓器（LDO）。其可調輸出電壓範圍為 1.25V 至 5.5V，最大輸出電流 300mA。採用 8 引腳 WSON 封裝（3mm x 2.5mm），專為空間受限且需要低噪聲和高電源抑制比（PSRR）的應用而設計。LP3982 在 300mA 負載下典型壓差僅 120mV，非常適合電池供電系統。其使能引腳支持電源排序和關斷控制，關斷時靜態電流低於 1µA。

詳細技術參數

核心特性

• 可調輸出電壓：1.25V 至 5.5V
• 低壓差：300mA 時典型值 120mV
• 高 PSRR：1kHz 時 60dB
• 低輸出噪聲：30µV_RMS
• 使能引腳支持電源排序
• 熱關斷和電流限制保護
• 與陶瓷輸出電容（1µF 至 10µF）穩定工作
• 小尺寸：8-WSON 封裝（3mm x 2.5mm）

典型應用場景

• 5G 基站電源管理（例如為射頻收發器提供 1.8V 電源）
• 汽車儀表板顯示（例如為信息娛樂處理器提供 3.3V 電源）
• 便攜式醫療設備（例如血糖儀需要低噪聲 2.5V 電源）
• 工業傳感器（例如 4-20mA 迴路供電變送器）
• 電池供電的 IoT 模塊（例如藍牙低功耗設備）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP3982ILDX-ADJ/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
