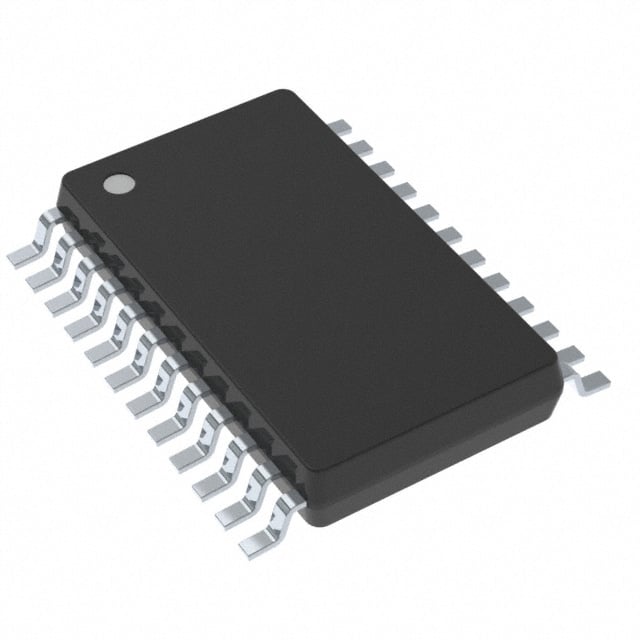

LP5012PWR TI LED Driver | 24-TSSOP | 12-Channel, 5.5V, I2C

Product Overview

The LP5012PWR from Texas Instruments is a 12-channel constant-current LED driver designed for high-performance lighting applications. It integrates a 12-bit PWM generator for each channel, enabling smooth and precise brightness control. The device operates from a single supply voltage of 2.7V to 5.5V, making it suitable for battery-powered and low-voltage systems. The LP5012PWR communicates via I2C interface, allowing easy integration with microcontrollers and processors. Its compact 24-TSSOP package saves board space while delivering robust thermal performance.

Detailed Technical Specifications

Key Features

• 12 independent constant-current outputs with 12-bit PWM dimming
• I2C interface with programmable address (up to 4 devices on one bus)
• Low quiescent current and shutdown mode for power saving
• Built-in thermal shutdown and overcurrent protection
• Output current accuracy: ±3% (typical)
• Flexible grouping and sequencing via I2C registers
• Small footprint 24-TSSOP package

Target Applications

• 5G base station status indicators and backlighting
• Automotive dashboard and infotainment display backlight
• Smart home lighting systems (e.g., smart bulbs, LED strips)
• Portable electronics (e.g., smartphone notification LEDs)
• Industrial control panel indicators
• Medical device display backlighting

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP5012PWR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
