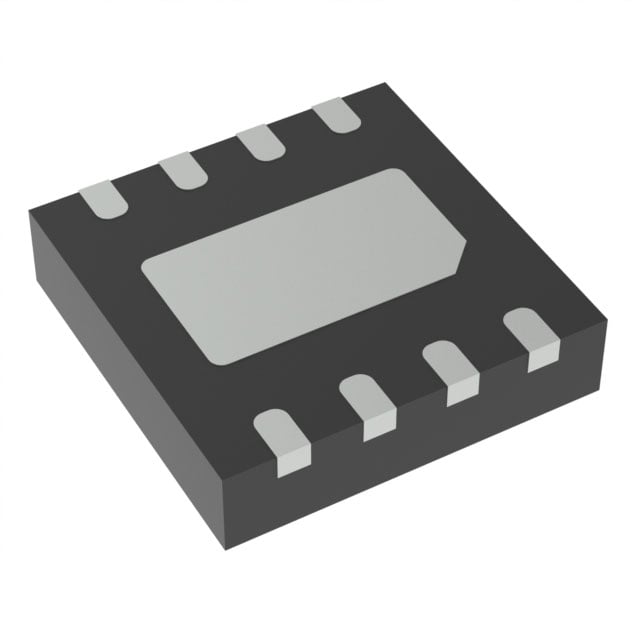

LP5812DDSDR TI LED Driver | 8-WSON(3x3) | 4-Channel, I2C, 1.8V Logic

Product Overview

The LP5812DDSDR is a high-performance, 4-channel LED driver from Texas Instruments, designed for precise current control and advanced lighting effects. Housed in a compact 8-WSON (3x3 mm) package, it integrates I2C-compatible interface for flexible brightness and pattern programming. With a wide input voltage range of 2.5V to 5.5V and 1.8V logic supply, it is ideal for portable and battery-powered applications. The device supports independent channel control, PWM dimming, and automatic breathing patterns, making it suitable for indicator LEDs, backlighting, and decorative lighting.

Detailed Technical Specifications

Key Features

• 4 independent LED channels with programmable current
• I2C control for brightness, blinking, and breathing patterns
• Low quiescent current (0.5 µA typical in shutdown)
• Built-in thermal shutdown and overcurrent protection
• Automatic fading and breathing effect without MCU intervention
• Small footprint: 3x3 mm WSON package

Target Applications

• Smartphone notification LEDs
• Portable electronics (e.g., smartwatches, fitness trackers)
• Automotive interior lighting (e.g., dashboard indicators)
• IoT devices (e.g., smart home sensors, thermostats)
• 5G base station status indicators
• Consumer electronics (e.g., gaming peripherals, audio equipment)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP5812DDSDR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
