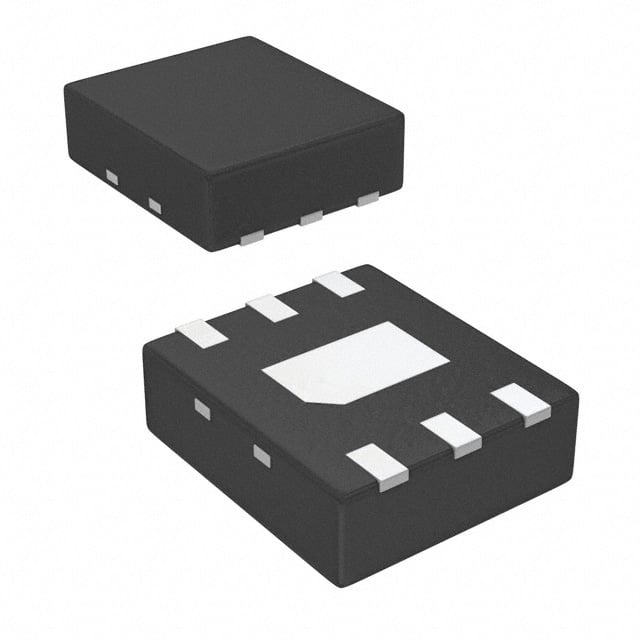

LP5900SDX-1.5/NOPB TI LDO Regulator | 6-WSON (2.2x2.5) | 1.5V Fixed Output, 150mA

Product Overview

The LP5900SDX-1.5/NOPB is a low-dropout (LDO) linear voltage regulator from Texas Instruments, offering a fixed output voltage of 1.5V with a maximum output current of 150mA. Housed in a compact 6-pin WSON package (2.2mm x 2.5mm), it is designed for space-constrained applications requiring low noise and high PSRR. The device features a low dropout voltage of typically 120mV at full load, enabling efficient operation even with small input-to-output voltage differentials. Its ultra-low quiescent current (25µA typical) makes it ideal for battery-powered devices. The LP5900SDX-1.5/NOPB also includes thermal shutdown and current limit protection, ensuring reliable operation under fault conditions.

Detailed Technical Specifications

Key Features

• Fixed 1.5V output voltage with ±2% accuracy
• Low dropout voltage: 120mV at 150mA
• Ultra-low quiescent current: 25µA
• High PSRR: 70dB at 1kHz
• Low output noise: 30µVrms
• Thermal shutdown and current limit protection
• Stable with ceramic output capacitors (1µF)
• Small 6-WSON package (2.2mm x 2.5mm)

Target Applications

• 5G base station power management (e.g., for RF transceivers)
• Automotive dashboard displays and infotainment systems
• Portable medical devices (e.g., glucose meters, pulse oximeters)
• Industrial sensor modules (e.g., pressure transmitters)
• Battery-powered IoT devices (e.g., smart locks, wearables)

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP5900SDX-1.5/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP5900SDX-1.5/NOPB 是德州儀器（TI）推出的一款低壓差線性穩壓器（LDO），提供固定的 1.5V 輸出電壓，最大輸出電流為 150mA。該器件採用緊湊的 6 引腳 WSON 封裝（2.2mm x 2.5mm），專為需要低噪聲和高電源抑制比（PSRR）的空間受限應用而設計。其典型壓差電壓在滿載時僅為 120mV，即使在輸入輸出電壓差較小的情況下也能高效運行。超低靜態電流（典型值 25µA）使其非常適合電池供電設備。LP5900SDX-1.5/NOPB 還包含熱關斷和電流限制保護功能，確保在故障條件下可靠運行。

詳細技術參數

核心特性

• 固定 1.5V 輸出電壓，精度 ±2%
• 低壓差電壓：150mA 時典型值 120mV
• 超低靜態電流：25µA
• 高電源抑制比：1kHz 時 70dB
• 低輸出噪聲：30µVrms
• 熱關斷和電流限制保護
• 與陶瓷輸出電容（1µF）穩定工作
• 小型 6-WSON 封裝（2.2mm x 2.5mm）

典型應用場景

• 5G 基站電源管理（例如用於射頻收發器）
• 汽車儀表板顯示和資訊娛樂系統
• 便攜式醫療設備（例如血糖儀、脈搏血氧儀）
• 工業傳感器模塊（例如壓力變送器）
• 電池供電的物聯網設備（例如智能鎖、可穿戴設備）

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP5900SDX-1.5/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
