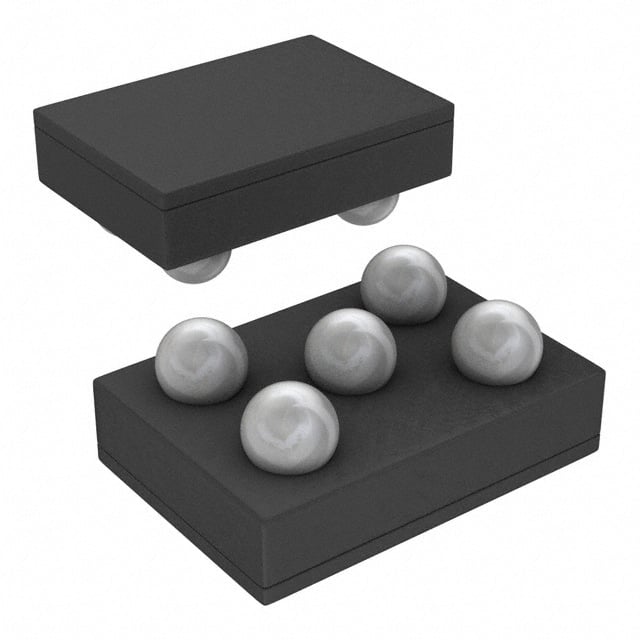

LP5952TLX-1.8/NOPB TI LDO Regulator | 5-DSBGA(1.41x1.08) | 1.8V Fixed Output, 350mA

Product Overview

The LP5952TLX-1.8/NOPB is a high-performance, low-dropout (LDO) voltage regulator from Texas Instruments, designed to deliver a fixed 1.8V output with a maximum current of 350mA. Housed in a compact 5-DSBGA (1.41mm x 1.08mm) package, this device is ideal for space-constrained applications requiring low noise and high power supply rejection ratio (PSRR). The LP5952 features a low quiescent current of 25µA (typical) and a dropout voltage of only 120mV at 350mA load, making it suitable for battery-powered and portable electronics. Its enable pin allows for power sequencing and shutdown control, reducing power consumption in standby modes.

Detailed Technical Specifications

Key Features

• Fixed 1.8V output with ±2% accuracy
• Low dropout voltage: 120mV at 350mA
• Ultra-low quiescent current: 25µA typical
• High PSRR: 70dB at 1kHz
• Low output noise: 30µVrms
• Enable pin for power management
• Thermal shutdown and overcurrent protection
• Small 5-DSBGA package for space-constrained designs

Target Applications

• 5G base stations: Powering RF transceivers and FPGAs
• Automotive dashboard: Supply for infotainment and display modules
• Portable medical devices: Glucose meters, pulse oximeters
• Wearable electronics: Smartwatches, fitness trackers
• Industrial sensors: Pressure and temperature transmitters

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP5952TLX-1.8/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

LP5952TLX-1.8/NOPB 是德州儀器（TI）推出的一款高性能低壓差線性穩壓器（LDO），提供固定的1.8V輸出，最大輸出電流為350mA。該器件採用緊湊的5-DSBGA（1.41mm x 1.08mm）封裝，非常適合空間受限且需要低噪聲和高電源抑制比（PSRR）的應用。LP5952 的典型靜態電流僅為25µA，在350mA負載下的壓差電壓僅為120mV，使其非常適合電池供電和便攜式電子設備。其使能引腳支持電源排序和關斷控制，可在待機模式下降低功耗。

詳細技術參數

核心特性

• 固定1.8V輸出，精度±2%
• 低壓差：350mA時典型值120mV
• 超低靜態電流：典型值25µA
• 高PSRR：1kHz時70dB
• 低輸出噪聲：30µVrms
• 使能引腳，便於電源管理
• 過熱關斷和過流保護
• 小型5-DSBGA封裝，節省空間

典型應用場景

• 5G基站：為射頻收發器和FPGA供電
• 汽車儀表盤：為信息娛樂和顯示模塊供電
• 便攜式醫療設備：血糖儀、脈搏血氧儀
• 可穿戴電子設備：智能手錶、健身追蹤器
• 工業傳感器：壓力傳感器和溫度變送器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 LP5952TLX-1.8/NOPB 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
