LP8552TLX-E04/NOPB TI LED Driver | 25-DSBGA | 6-Channel, 40V

Product Overview

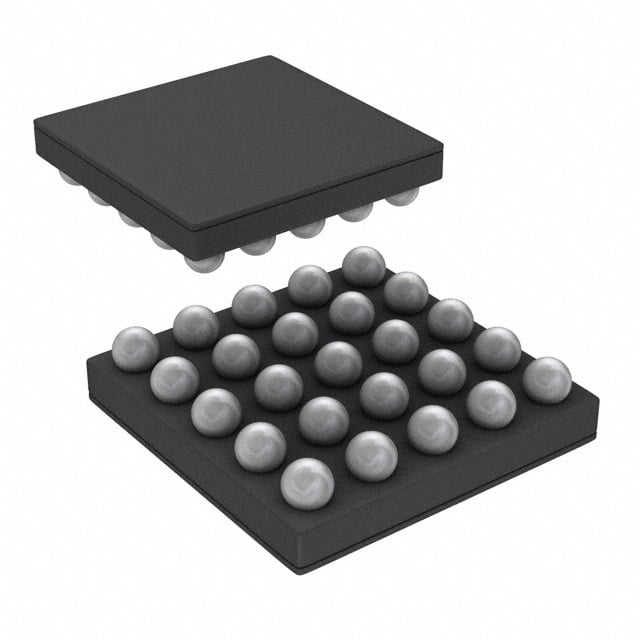

The LP8552TLX-E04/NOPB is a high-efficiency, 6-channel LED driver from Texas Instruments, designed for backlighting applications in LCD displays. It integrates a boost converter and current sinks to drive up to 6 strings of LEDs with excellent current matching. The device operates from a 2.7V to 5.5V input supply and can boost up to 40V, making it suitable for small to medium-sized displays. The package is a compact 25-bump DSBGA (0.4mm pitch) for space-constrained designs.

Detailed Technical Specifications

Key Features

• Integrated boost converter with 40V rating
• 6-channel current sinks with ±1.5% matching
• PWM dimming with up to 30kHz frequency
• Automatic phase shifting for reduced ripple
• Comprehensive fault protection (OVP, OCP, OTP, LED fault)
• I2C interface for flexible configuration
• Ultra-small 25-DSBGA package

Target Applications

• Smartphone and tablet LCD backlighting
• Automotive infotainment displays (e.g., Tesla Model 3 center console)
• Industrial control panels (e.g., Siemens HMI)
• Portable medical devices (e.g., ultrasound scanners)
• 5G base station status displays
• Notebook and netbook displays

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LP8552TLX-E04/NOPB. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
