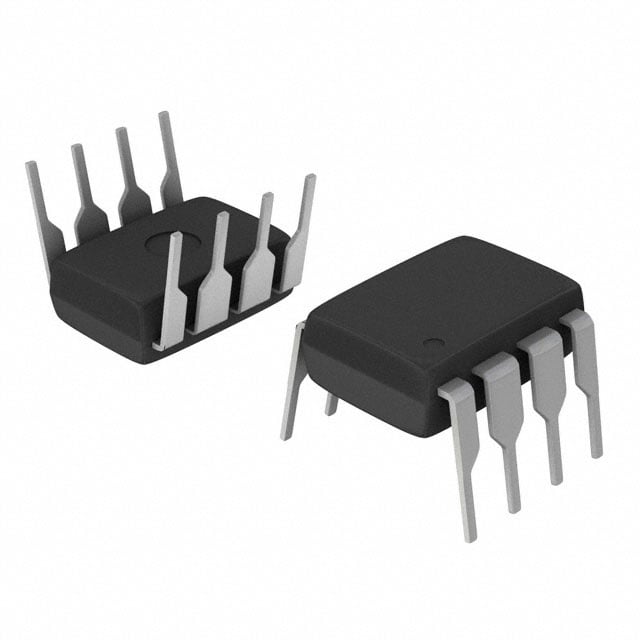

LT1054CP TI Switched Capacitor Voltage Converter | 8-PDIP | Input 3.5V-15V, Output -3.5V to -15V

Product Overview

The LT1054CP from Texas Instruments is a monolithic, bipolar, switched-capacitor voltage converter and regulator. It provides a regulated output voltage that is the negative of the input voltage, with a typical conversion efficiency of 99.9%. The device operates over a wide input voltage range of 3.5V to 15V and can deliver up to 100mA output current. Housed in an 8-pin PDIP package, the LT1054CP is ideal for applications requiring a negative voltage supply from a positive input.

Detailed Technical Specifications

Key Features

• Regulated negative output from positive input
• High efficiency: up to 99.9%
• Wide input voltage range: 3.5V to 15V
• Output current up to 100mA
• Low quiescent current: 2.5mA typical
• Internal oscillator with 25 kHz switching frequency
• Thermal shutdown protection
• 8-pin PDIP package for easy prototyping

Target Applications

• 5G base station power supplies: generating negative bias for GaN amplifiers
• Automotive dashboard displays: providing negative voltage for LCD bias
• Industrial sensor interfaces: creating bipolar supplies for op-amps
• Portable instrumentation: battery-powered negative voltage generation
• Telecom equipment: -5V supply for legacy logic

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for LT1054CP. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
