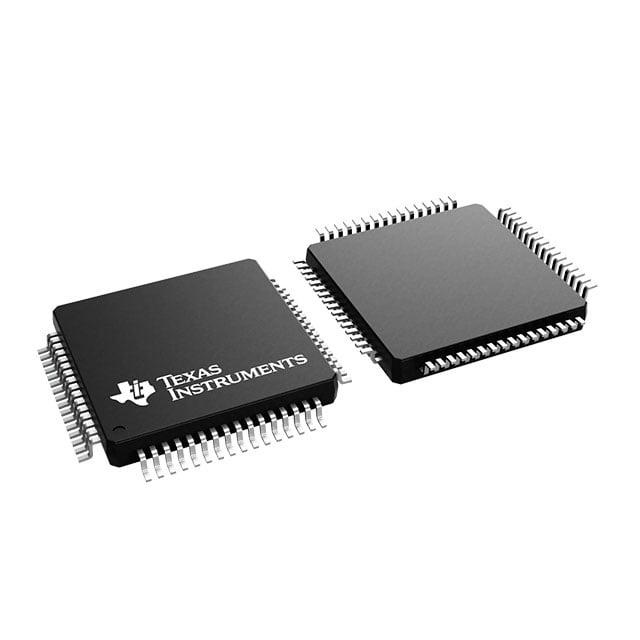

MSP430F156IPMR TI MCU | 64-LQFP (10x10) | 16-bit, 60KB Flash, 2KB RAM

Product Overview

The MSP430F156IPMR is a 16-bit ultra-low-power microcontroller from Texas Instruments' MSP430 family. It features a powerful 16-bit RISC CPU, 60KB of flash memory, and 2KB of RAM. Operating at up to 8 MHz, it is designed for battery-powered and energy-efficient applications. The device includes a 12-bit ADC, two 16-bit timers, and a versatile serial communication interface (USART) supporting UART, SPI, and I2C. Housed in a 64-pin LQFP package (10x10 mm), it offers a compact solution for embedded control systems.

Detailed Technical Specifications

Key Features

• Ultra-low power consumption: 0.1 µA RAM retention, 0.8 µA standby mode
• 16-bit RISC architecture with 27 instructions
• 60KB in-system programmable flash
• 2KB RAM
• 12-bit SAR ADC with internal reference
• Two 16-bit timers with capture/compare
• USART module for serial communication
• Brown-out reset (BOR) and supply voltage supervisor (SVS)
• Up to 48 I/O pins
• JTAG and Spy-Bi-Wire interface for programming and debug

Target Applications

The MSP430F156IPMR is ideal for applications requiring low power and moderate performance. Specific examples include:

• Smart meters (electricity, water, gas)
• Portable medical devices (glucose meters, pulse oximeters)
• Wireless sensor nodes (IoT endpoints)
• Industrial control systems (PLC I/O modules)
• Automotive body electronics (window lift, seat control)
• Battery management systems (BMS) for Li-ion packs
• 5G base station power monitoring
• Dashboard controllers in automotive

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for MSP430F156IPMR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.
