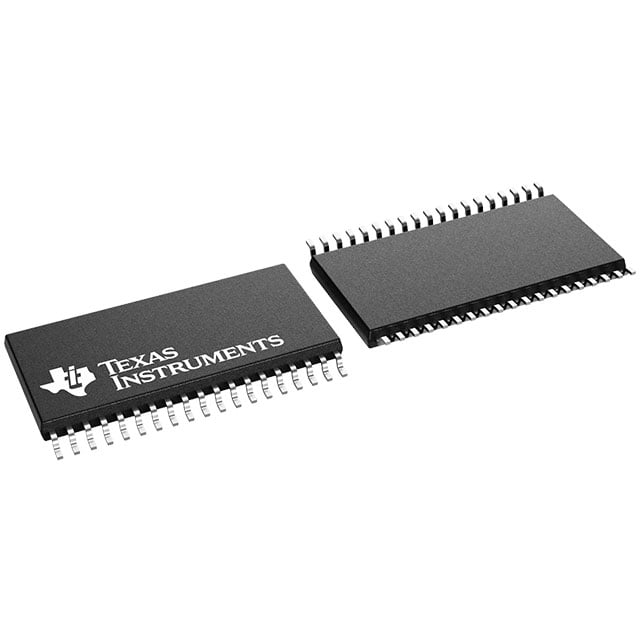

MSP430F5132IDAR TI MCU | 38-TSSOP | 16-bit, 25MHz, 8KB Flash

Product Overview

The MSP430F5132IDAR is a 16-bit ultra-low-power microcontroller from Texas Instruments' MSP430F5xx family. It features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The device is designed for battery-powered and energy-harvesting applications, offering a wide operating voltage range and multiple low-power modes. With integrated peripherals such as a 12-bit ADC, comparators, and serial communication interfaces, it provides a flexible solution for various embedded control systems.

Detailed Technical Specifications

Key Features

• Ultra-low power consumption: 230 µA at 1 MHz active mode, 0.5 µA standby mode
• Fast wake-up from standby in less than 5 µs
• Integrated 12-bit SAR ADC with internal reference
• Two universal serial communication interfaces (USCI) supporting UART, SPI, I2C
• Two 16-bit timers with capture/compare and PWM capability
• Brownout reset (BOR) and supply voltage supervisor (SVS)
• Up to 31 general-purpose I/O pins
• On-chip emulation module for debugging

Target Applications

The MSP430F5132IDAR is ideal for applications requiring low power and high performance, such as:

• 5G base station power management and monitoring
• Automotive dashboard control modules
• Portable medical devices like glucose meters and pulse oximeters
• Smart sensors for industrial IoT
• Battery management systems in electric vehicles
• Wireless charging controllers

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for MSP430F5132IDAR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

MSP430F5132IDAR 是德州儀器 MSP430F5xx 系列的一款 16 位超低功耗微控制器。它採用強大的 16 位 RISC CPU、16 位寄存器和常數發生器，可實現最高代碼效率。該器件專為電池供電和能量採集應用而設計，具有寬工作電壓範圍和多種低功耗模式。憑藉集成外設（如 12 位 ADC、比較器和串行通信接口），它為各種嵌入式控制系統提供了靈活的解決方案。

詳細技術參數

核心特性

• 超低功耗：1 MHz 活動模式下 230 µA，待機模式下 0.5 µA
• 從待機模式快速喚醒，時間小於 5 µs
• 集成 12 位 SAR ADC，帶內部參考
• 兩個通用串行通信接口 (USCI)，支持 UART、SPI、I2C
• 兩個 16 位定時器，帶捕獲/比較和 PWM 功能
• 欠壓復位 (BOR) 和電源電壓監視器 (SVS)
• 最多 31 個通用 I/O 引腳
• 片上仿真模塊，用於調試

典型應用場景

MSP430F5132IDAR 非常適合需要低功耗和高性能的應用，例如：

• 5G 基站電源管理與監控
• 汽車儀表盤控制模塊
• 便攜式醫療設備，如血糖儀和脈搏血氧儀
• 工業物聯網智能傳感器
• 電動汽車電池管理系統
• 無線充電控制器

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 MSP430F5132IDAR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
