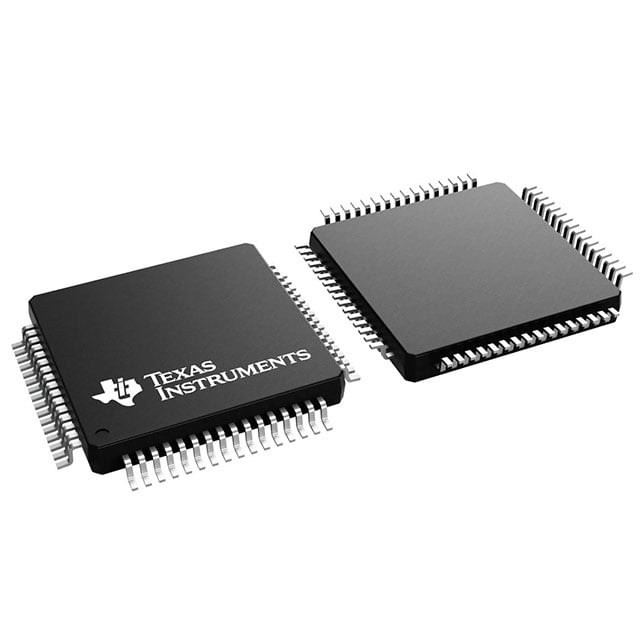

MSPM0G3505SPMR TI MCU | 64-LQFP (10x10) | 80MHz ARM Cortex-M0+, 128KB Flash

Product Overview

The MSPM0G3505SPMR is a high-performance mixed-signal microcontroller from Texas Instruments, part of the MSPM0G family based on the ARM Cortex-M0+ core. Operating at up to 80 MHz, it integrates 128KB of flash memory and 32KB of SRAM, making it suitable for real-time control and edge processing applications. The device comes in a 64-pin LQFP package (10x10 mm) and offers a rich set of analog peripherals, including a 12-bit 4-MSPS ADC, two comparators, and two operational amplifiers. It also features multiple communication interfaces such as UART, SPI, I2C, and CAN-FD, along with advanced timers for PWM generation. The MSPM0G3505SPMR is designed for industrial, automotive, and consumer applications requiring low power consumption and high integration.

Detailed Technical Specifications

Key Features

• ARM Cortex-M0+ core with single-cycle multiplier and fast interrupt handling
• Up to 80 MHz operation with 128KB flash and 32KB SRAM
• High-precision 12-bit ADC with 4 MSPS sampling rate
• Integrated analog peripherals: comparators, op-amps, and DAC
• Multiple serial interfaces including CAN-FD for robust communication
• Advanced timer modules for PWM, capture/compare, and quadrature encoder interface
• Low-power modes: sleep, deep sleep, and standby with fast wake-up
• Security features: 128-bit unique ID, CRC accelerator, and write protection
• Wide operating voltage and temperature range for industrial and automotive use

Target Applications

• Industrial automation: PLCs, motor control, and sensor hubs
• Automotive: body control modules, lighting, and battery management systems
• Consumer electronics: smart home devices, wearables, and gaming peripherals
• 5G base station: power management and monitoring
• Medical devices: patient monitoring and diagnostic equipment
• IoT edge nodes: data acquisition and preprocessing

Global Supply Chain & Wholesale Solutions

At Jasin Chip, we provide professional supply chain and wholesale solutions for MSPM0G3505SPMR. Our core advantages include:

• 24/7 Global Customer Support: Professional team providing instant quotes and technical support worldwide.
• In-stock Inventory, Same-day Shipping: We maintain localized stock; orders confirmed before 4 PM are shipped the same day.
• HK-SZ Synergy, Flexible Settlement: Direct global shipping from Shenzhen with support for HK bank transfers and multi-currency.
• Escrow Secured Transactions: We support Escrow.com for secure transactions, ensuring peace of mind for batch orders.
• BOM Kitting & Sampling Services: Specialized sourcing for testing samples and urgent shortage components.

Quality Assurance & Compliance

Jasin Chip guarantees that all delivered products are 100% original factory stock with full quality assurance and traceability.

• 100% Original & Authentic: All components are guaranteed to be authentic with strict quality control.
• RoHS Compliant: All electronic components comply with international environmental and safety standards.
• Original Factory Packaging: We maintain original factory packaging and seals to ensure ESD protection and physical integrity.

產品概述

MSPM0G3505SPMR 是德州儀器推出的一款高性能混合信號微控制器，屬於基於 ARM Cortex-M0+ 內核的 MSPM0G 系列。其最高工作頻率為 80 MHz，集成 128KB 閃存和 32KB SRAM，適用於實時控制和邊緣處理應用。器件採用 64 引腳 LQFP 封裝（10x10 mm），提供豐富的模擬外設，包括 12 位 4 MSPS ADC、兩個比較器和兩個運算放大器。它還支持多種通信接口，如 UART、SPI、I2C 和 CAN-FD，以及用於 PWM 生成的高級定時器。MSPM0G3505SPMR 專為需要低功耗和高集成度的工業、汽車和消費類應用而設計。

詳細技術參數

核心特性

• ARM Cortex-M0+ 內核，單週期乘法器和快速中斷處理
• 最高 80 MHz 工作頻率，128KB 閃存和 32KB SRAM
• 高精度 12 位 ADC，採樣率 4 MSPS
• 集成模擬外設：比較器、運算放大器和 DAC
• 多種串行接口，包括 CAN-FD，支持穩健通信
• 高級定時器模塊，支持 PWM、捕獲/比較和正交編碼器接口
• 低功耗模式：睡眠、深度睡眠和待機，快速喚醒
• 安全特性：128 位唯一 ID、CRC 加速器和寫保護
• 寬工作電壓和溫度範圍，適用於工業和汽車應用

典型應用場景

• 工業自動化：PLC、電機控制和傳感器集線器
• 汽車電子：車身控制模塊、照明和電池管理系統
• 消費電子：智能家居設備、可穿戴設備和遊戲外設
• 5G 基站：電源管理和監控
• 醫療設備：病人監護和診斷設備
• 物聯網邊緣節點：數據採集和預處理

環球供應鏈與批發合作夥伴方案

在 Jasin Chip，我們為 MSPM0G3505SPMR 提供全面的供應鏈與批發解決方案。 我們的核心優勢包括：

• 全天候環球客戶支援：專業團隊為您提供即時報價及技術支援，無需漫長等待。
• 現貨庫存，即日發貨：確保現貨充足。下午 4 點前確認訂單，即可安排當天寄出。
• 深港聯動，結算靈活：深圳直發全球，物流高效可靠；支援香港銀行戶口轉賬及多幣種結算。
• Escrow 擔保交易：支援 Escrow.com 平台交易，保障買賣雙方權益，小批量訂單亦可安心在線下單。
• BOM 配單與樣板服務：提供樣板測試及認證支援。專注一站式 BOM 配套及緊急缺料採購服務。

品質保證與合規

Jasin Chip 承諾所有出貨產品均為原廠正貨，具備完善的品質保證及產品可追溯性。

• 100% 原廠正貨：承諾所有供應零件均為原裝現貨，品質嚴格把關，來源清晰可追溯。
• 符合 RoHS 認證：所有電子元器件均符合國際環保標準及相關安全認證。
• 原廠封裝保護：嚴格保留原廠原始包裝及封條，確保物流過程中的靜電防護 (ESD) 與物理安全。

以上產品均為原廠正貨，提供 BOM 配單及現貨庫存支援，歡迎查詢。
